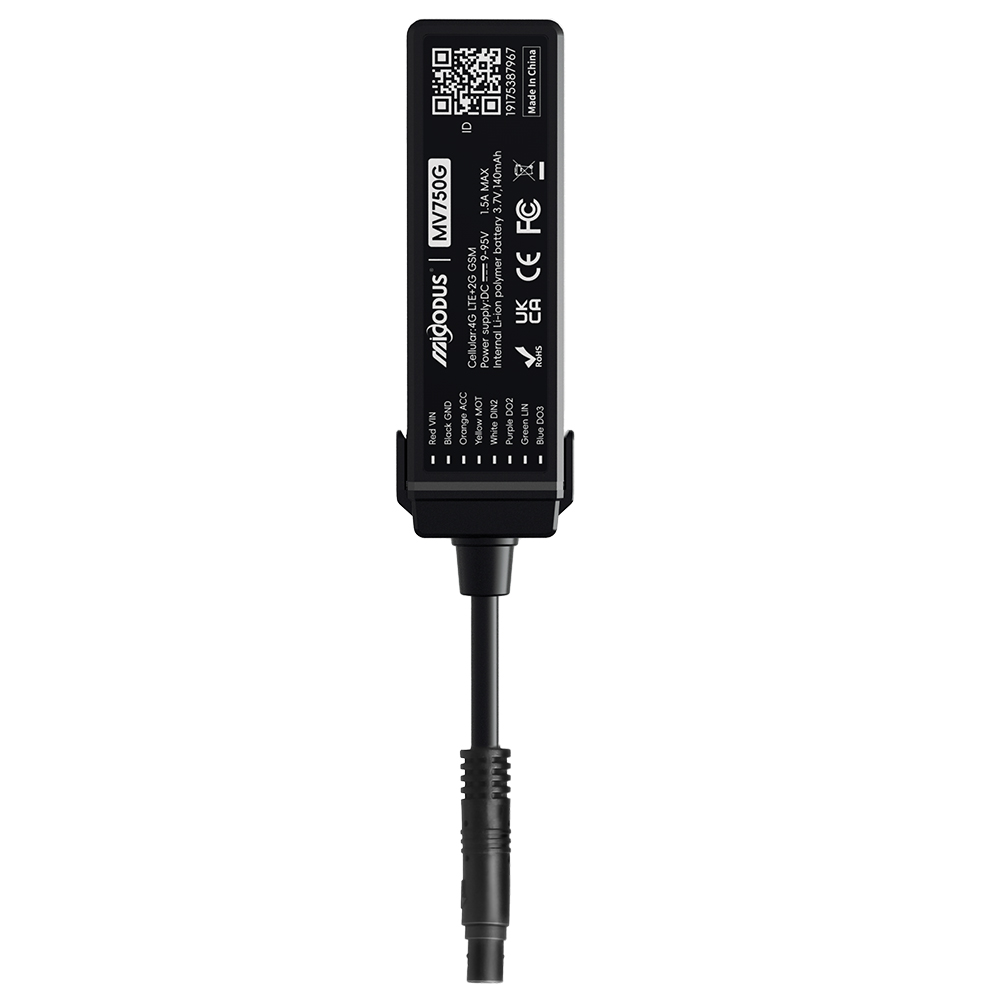

Multifunctional 4G Vehicle Tracker – Waterproof, Anti-Jamming & Door Control
The MV750G stands out with IP67 waterproofing, signal jamming detection that triggers fuel cut-off, and remote door lock/unlock control—rare anti-theft edges over rivals. It also adds door-open alarms and a built-in buzzer for on-site alerts. With 9-95V wide voltage, ACC detection, and 1500-piece blind-area storage, it suits cars, trucks, and fleets needing advanced security and access control.
Características del producto
-
Remote Door Lock-UnlockRemotely lock or unlock your vehicle door via APP or SMS command. Secure your car and gain convenient remote access anytime. -
Buzzer AlarmSound alert either to locate your car or warn intruders. -

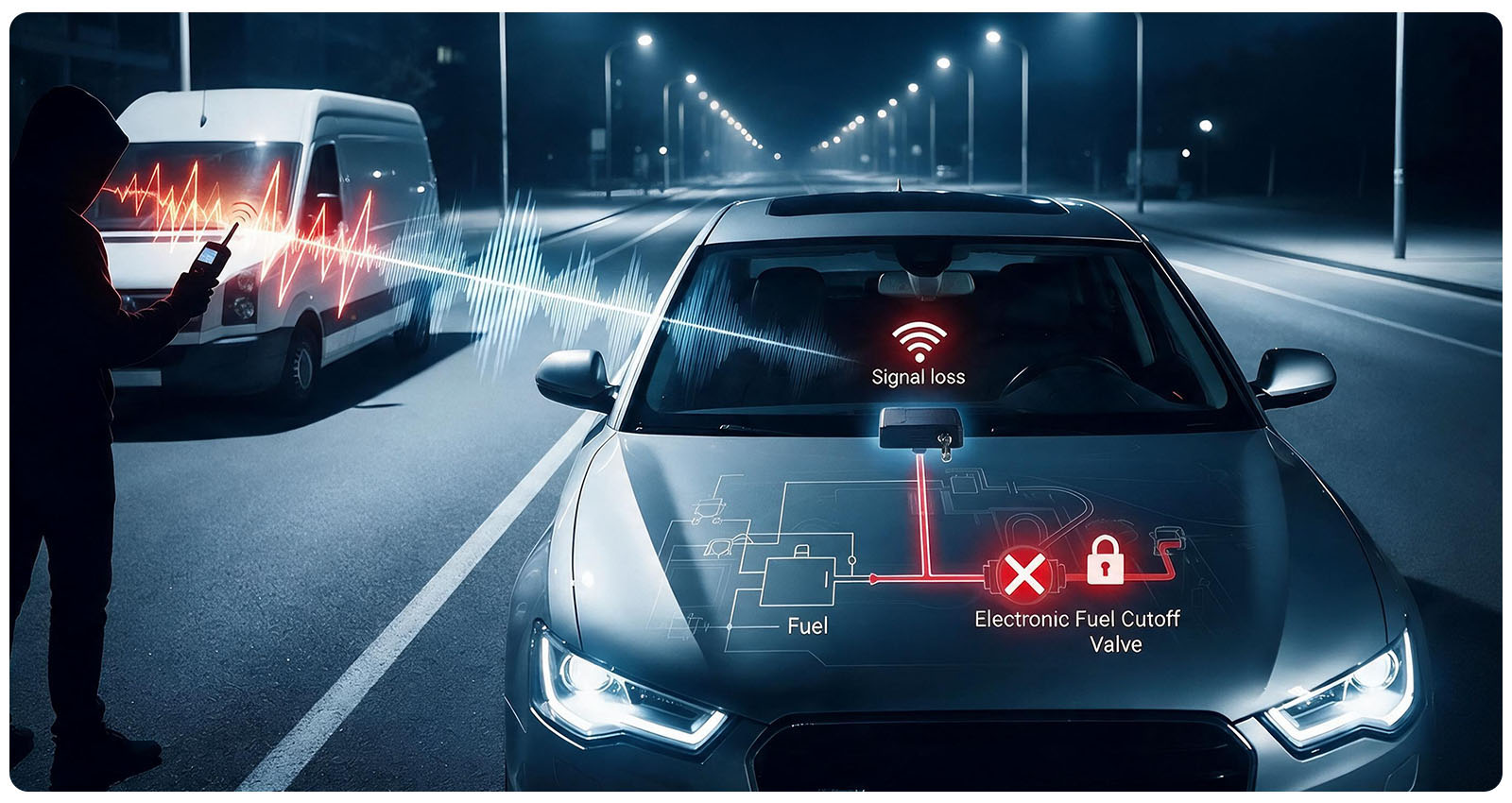

Anti JammingAuto fuel cut if thieves use jammer nearby when you’re away, preventing vehicle theft. -

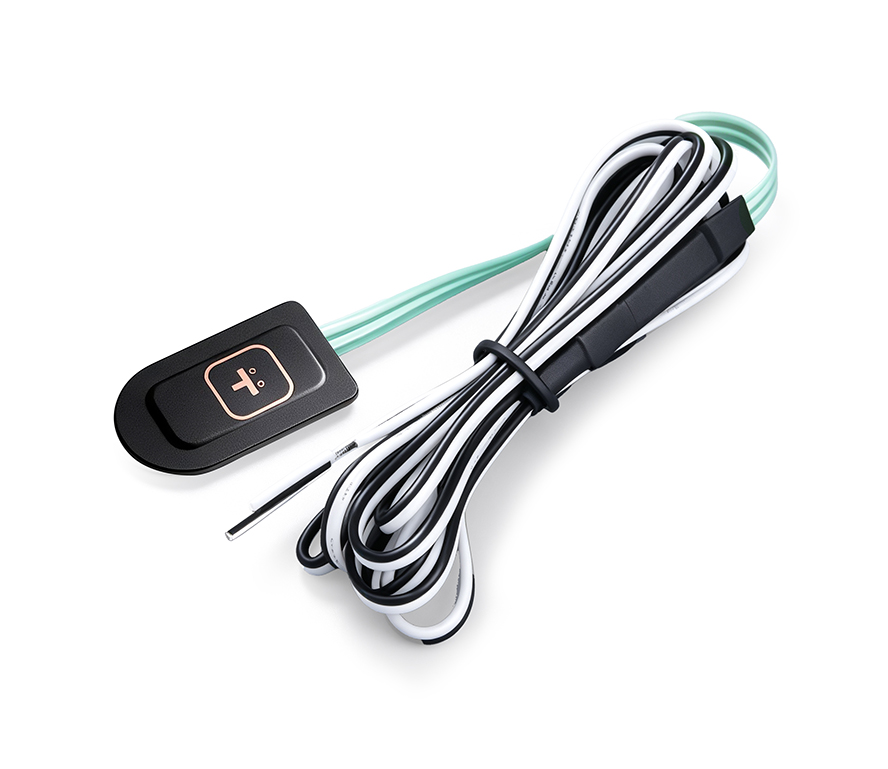

SOS Emergency CallSend urgent alerts with one tap, get assistance when meet emergencies. -
IP67 WaterproofWithstand temporary immersion, adapt to harsh outdoor environments. -
Open Door AlarmReceive instant alerts when your car door is opened. Detect unauthorized entry and safeguard your vehicle against theft. -
ACC Status DetectionCapture vehicle ACC status for accurate activity records and asset supervision. -
Remote Cut-off Fuel/PowerRemotely cut fuel or power for anti-theft protection and emergency safety control. -
Tracking & PlaybackKeep track of your asset and trace routes for safety verification. -
Geo-fenceGet alerts for unauthorized zone crossings, restrict vehicle activity range. -
Low Voltage AlarmMonitor car battery voltage, alert you early to avoid vehicle breakdown. -
Multiple Anti-theft AlarmsMovement, vibration, wire‑cut and ignition status alarms to guard your vehicle around the clock.
- Especificaciones del producto
- Características clave
- Descargar (Manual / Catálogo)
Filtro
Device Param
|
Model
|
MV750G
|
|
Demension
|
90.8(L)*28mm(W)*16mm(H)
|
|
Weight
|
47.6g
|
|
Working Voltage
|
DC 9V - 95V
|
|
Working Temperature
|
-20℃ - 75℃
|
|
Working Humidity
|
10%-85%RH
|
|
Built-in Memory
|
3040pcs GPS data can be stored at network blind area
|
GNSS
|
Hot/Cold Start
|
<1s，<32s @ Open Sky
|
| Positioning Module | Zhongke Microelectronics AT6558R |
| GPS Channels | 32 |
| GNSS Antenna |
Built in ceramic dielectric antenna, 18*18*4mm
|
| Positioning Type | GPS+BDS+GLONASS+LBS+AGPS |
|
GPS Frequency
|
L1: 1575.42±1.023MHz
|
|
BDS Frequency
|
B1:1561.098±2.046MHz
|
|
Accurancy |
Location accuracy: <10m（1σ）
|
|
Timing accuracy: <30ns（1σ）
|
|
|
Speed accuracy: <0.1m/s（1σ）
|
Cellular
| Technology |
2G GSM+4G LTE CAT1
|
|
Working Frequency
|
MV750G-EU
Module: Quectel EU915U-EU
GSM: 850/900/1800/1900MHz
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
|
|
MV750G-LA
Module: Quectel EU915U-LA
GSM: 850/900/1800/1900MHz
LTE-FDD: B2/B3/B4/B5//B7/B8/B28/B66
|
|
| Cellular Antenna |
Built-in, FPC
|
Power
| Battery |
Built-in 3.7V 140mAh Polymer Battery |
|
Work Current |
12V/Average 30mA
|
|
Sleep Current |
12V/Average 8mA
|
Interface
| Digital Input |
1 x digital input for door sensor |
| 1 x digital input for SOS button | |
| 1 x digital input for ignition detection | |
| Digital Output |
1 x digital output for cut off oil |
| 1 x digital output for unlock door/bell search | |
| 1 x digital output for lock door/bell alarm | |
| SIM Card | Nano SIM Card |
| Firmware Upgrade | OTA & UART Serial Upgrade |
| LED indication |
GSM LED |
| Charging LED | |
| GPS LED |
Certification
| Regulatory | CE, RoHS, FCC, UKCA, ISED |
