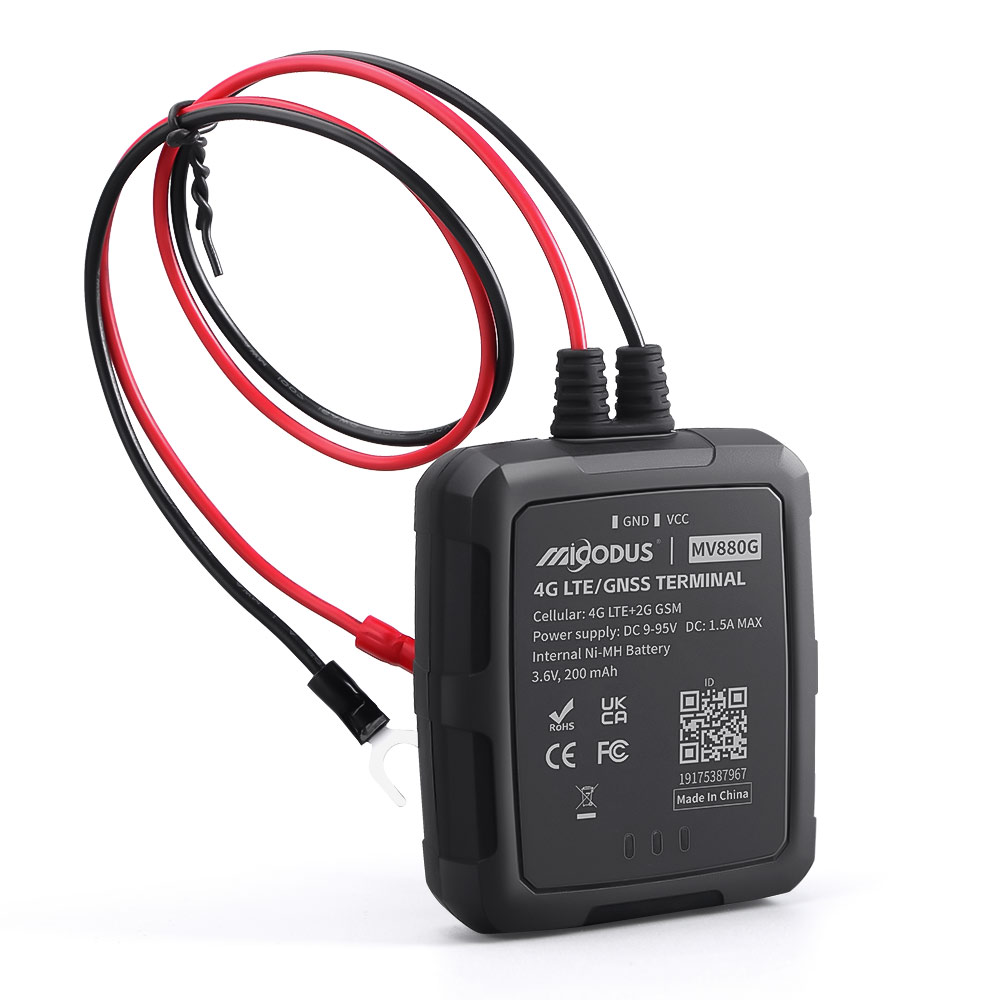

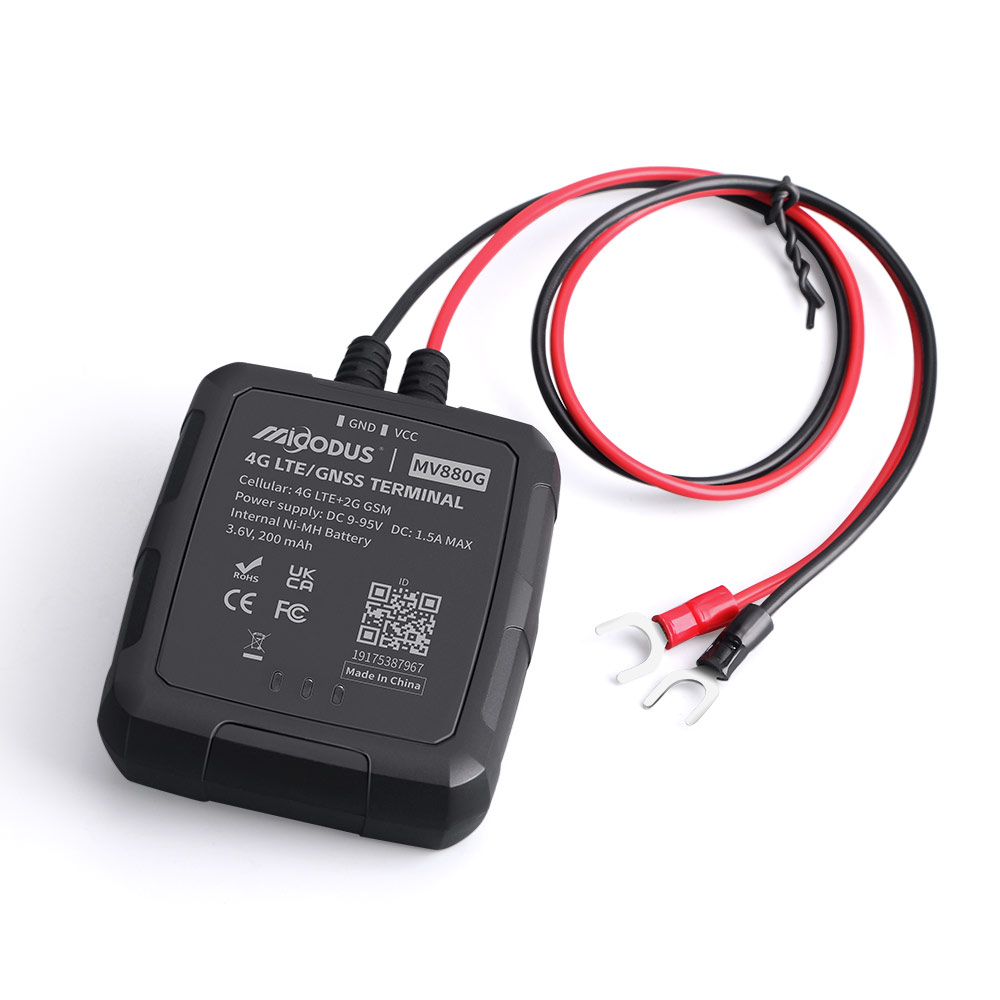

4G Vehicle GNSS Tracker – Rugged & Easy to Install
The MV880G is a waterproof (IP67) 4G tracker with GPS+GLONASS+BDS+AGPS for ±1.5m accuracy. Its key edges are an explosion-proof battery for safer, longer operation and easy installation with simple wiring—no complex setup needed. It also offers a 9-95V wide voltage range and 720-piece blind-area data storage, plus vibration, power-disconnect, and low-voltage alarms. Ideal for cars, trucks, and motorcycles.
Características del producto
-

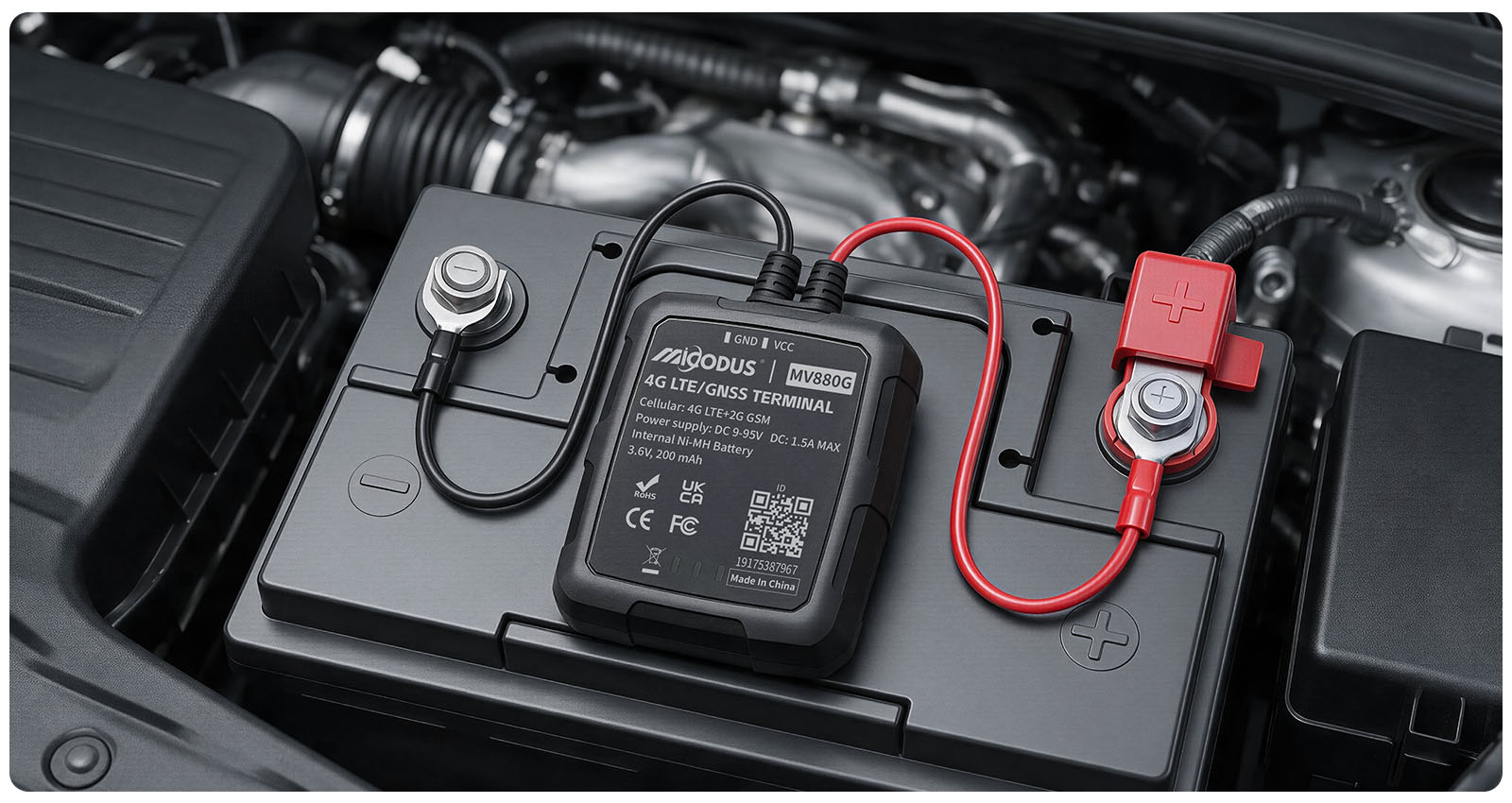

Ultra-easy InstallationSimple setup, no professional tools required, lowering installation costs. -
Explosion-proof BatteryBuilt-in high-temp & explosion-proof battery for safer mounting on car battery. -
35x35x4mm AntennaLarger antenna captures more satellite signals for precise positioning. -
Bluetooth APN SetupConfigure APN via Bluetooth, no SMS or cable required, supports data-only SIM. -
IP67 WaterproofWithstand temporary immersion, adapt to harsh outdoor environments. -

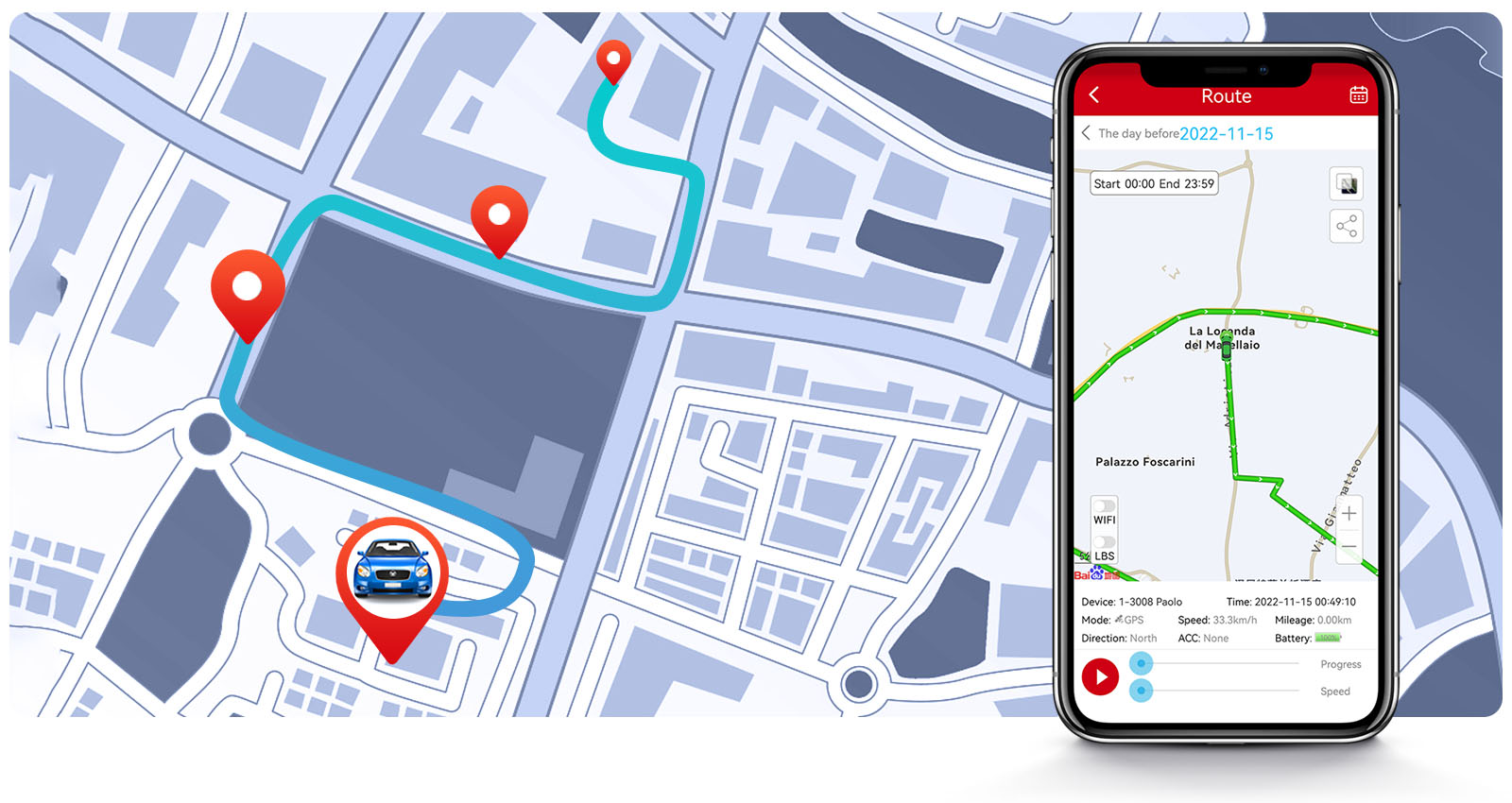

Trajectory PlaybackReplay 180 days route to trace asset paths and secure your assets. -
Geo-fenceGet alerts for unauthorized zone crossings, restrict vehicle activity range. -

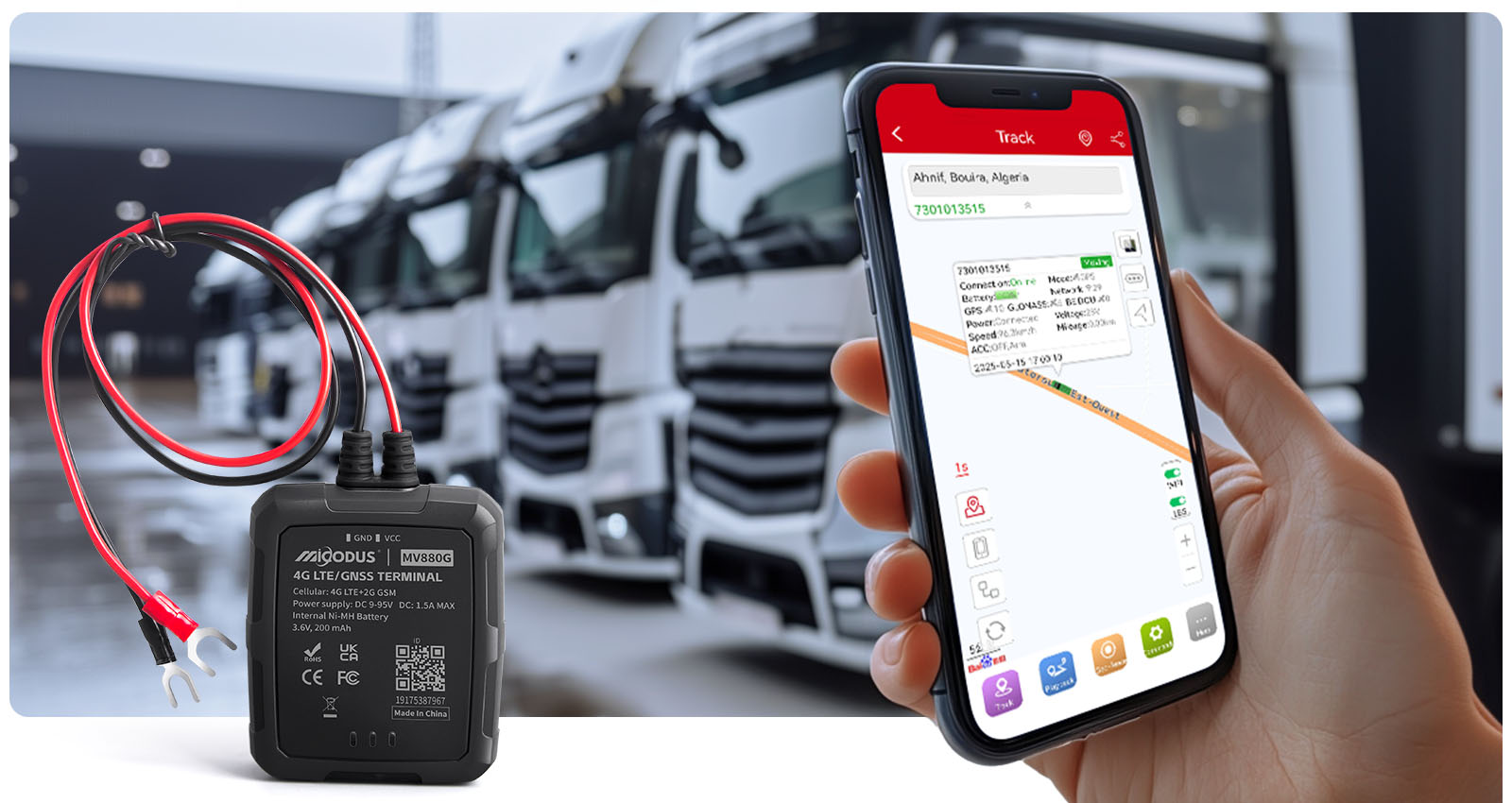

Real-time TrackingMonitor your asset location live, keep full control all the time. -
Overspeed AlarmTrigger alerts when speed exceeds limit, manage reckless driving risks. -
Low Voltage AlarmMonitor car battery voltage, alert you early to avoid vehicle breakdown. -
GNSS+LBS PositioningPrecise satellite positioning, LBS backup when satellite signals drop. -
Multiple Anti-theft AlarmsMovement, vibration and wire‑cut alarms to guard your vehicle around the clock.
- Especificaciones del producto
- Características clave
- Descargar (Manual / Catálogo)
Filtro
Device Param
|
Model
|
MV880G
|
|
Demension
|
58*21*70mm
|
|
Weight
|
104.3g
|
|
Working Voltage
|
DC 9V - 95V
|
|
Working Temperature
|
-20℃ - 75℃
|
|
Working Humidity
|
10%-85%RH
|
|
Built-in Memory
|
640pcs GPS data can be stored at network blind area
|
GNSS
|
Hot/Cold Start
|
<1s，<32s @ Open Sky
|
| Tracking sensitivity | -162 dBm |
| GPS Channels | 120 |
| GNSS Antenna |
Built-in Ceramics GNSS Antenna, 35mm*35mm*4mm
|
| Positioning Module Model |
Beken Corporation BK1661
|
| Positioning Type | GPS+BDS+GLONASS+LBS+AGPS |
|
GPS Frequency
|
L1: 1575.42±1.023MHz
|
|
BDS Frequency
|
B1:1561.098±2.046MHz
|
|
Accurancy |
Location accuracy: <1.5mCEP
|
|
AGPS First positioning time< 1.5 s
|
|
|
Timing accuracy: <30ns（1σ）
|
|
|
Speed accuracy: <0.1m/s（1σ）
|
Cellular
| Technology |
2G GSM+4G LTE CAT1
|
|
Working Frequency
|
GSM: 850/900/1800/1900MHz
|
| LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66 |
|
|
LTE-TDD: B34/B38/B39/B40/B41
|
|
| Cellular Antenna |
Built-in, FPC
|
| Communication Module Model |
SIMCOM A7670G
|
| Chip Bluetooth |
Nations N32WB03x BLE 5.1
|
Power
| Battery |
NI-MH battery AAAAA200T*3 3.6V 200mAh |
|
Work Current |
12V/Average 34.90mA
|
|
Sleep Current |
12V/Average 5.98mA
|
Interface

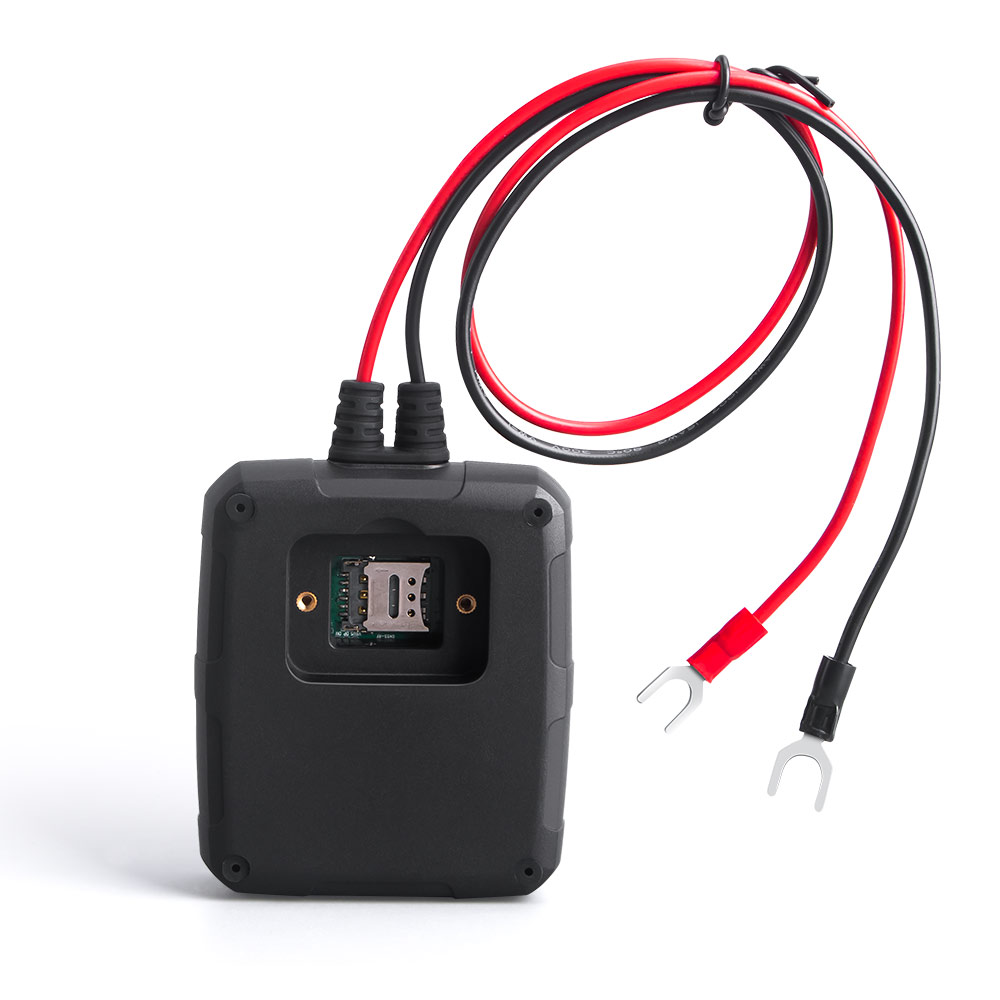

| SIM Card | Nano SIM Card |
| Firmware Upgrade | OTA Upgrade |

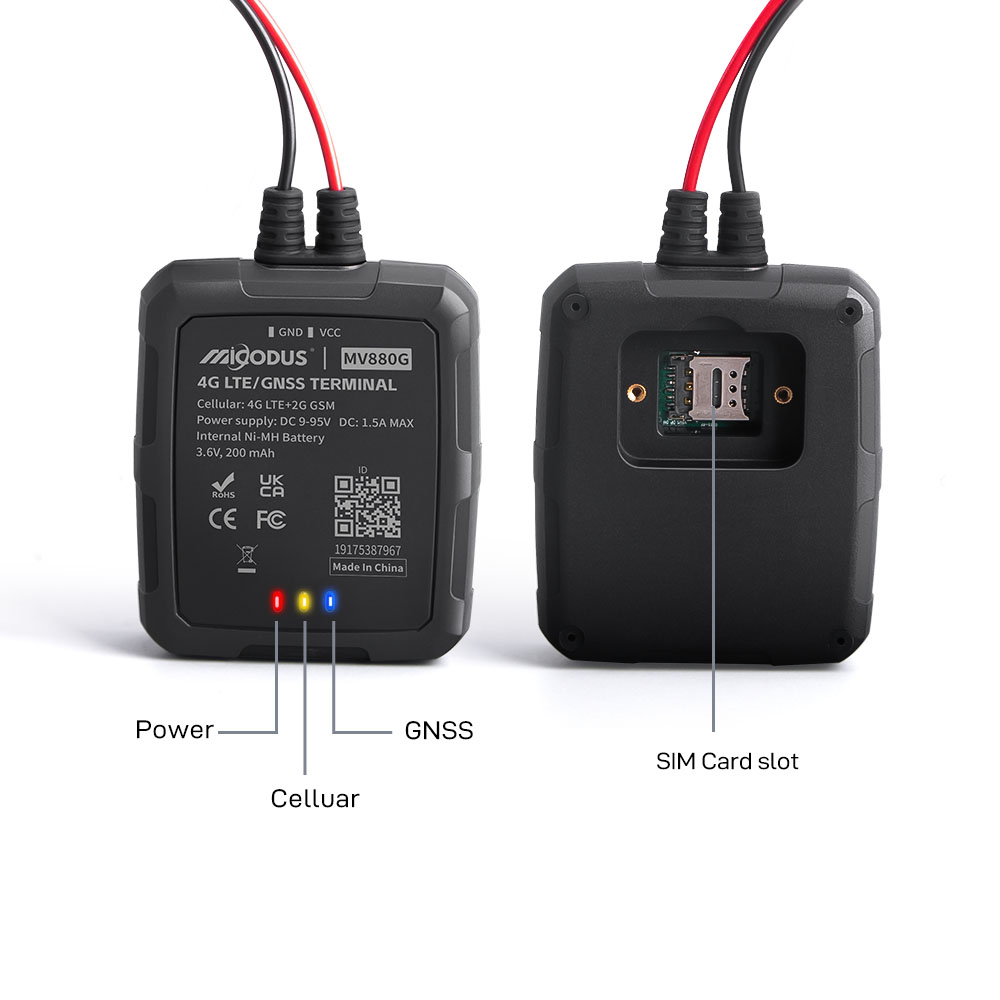

| LED indication |
GSM LED |
| Charging LED | |
| GPS LED |
Certification
| Regulatory | CE, RoHS, FCC, UKCA, ISED |
