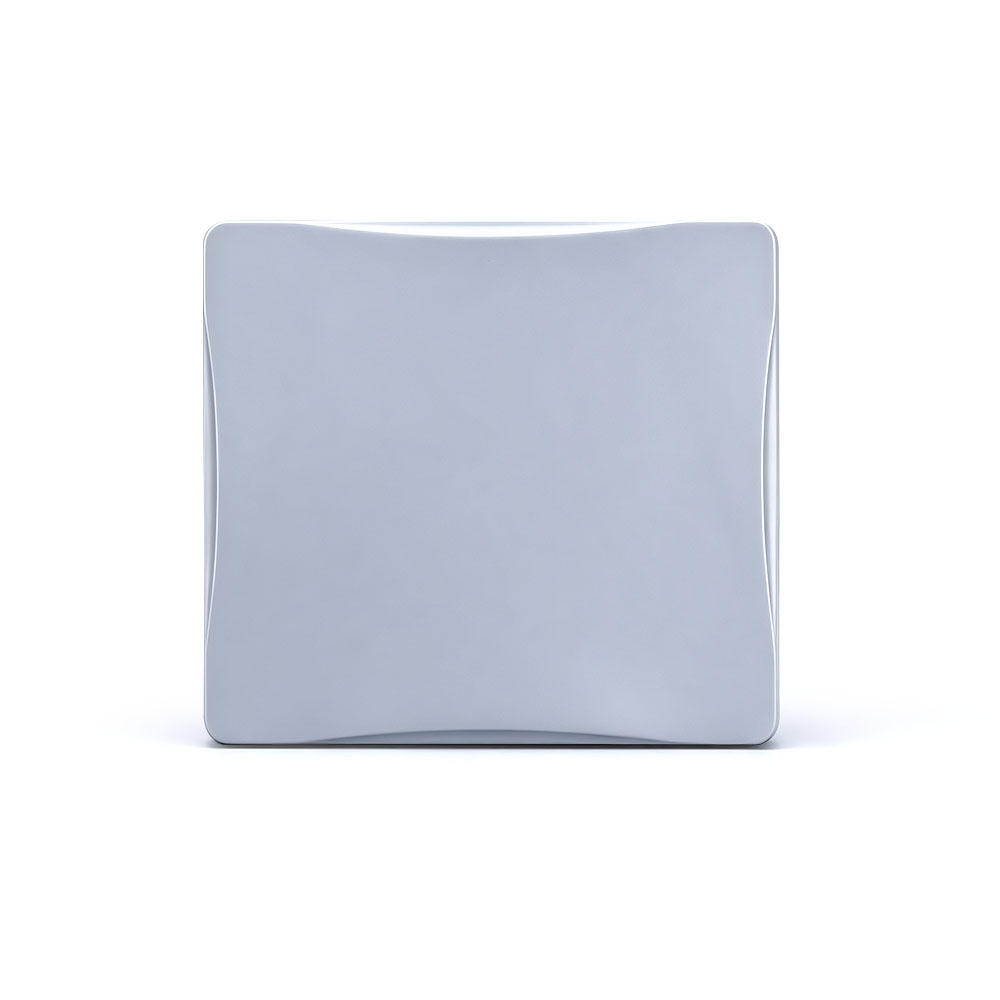

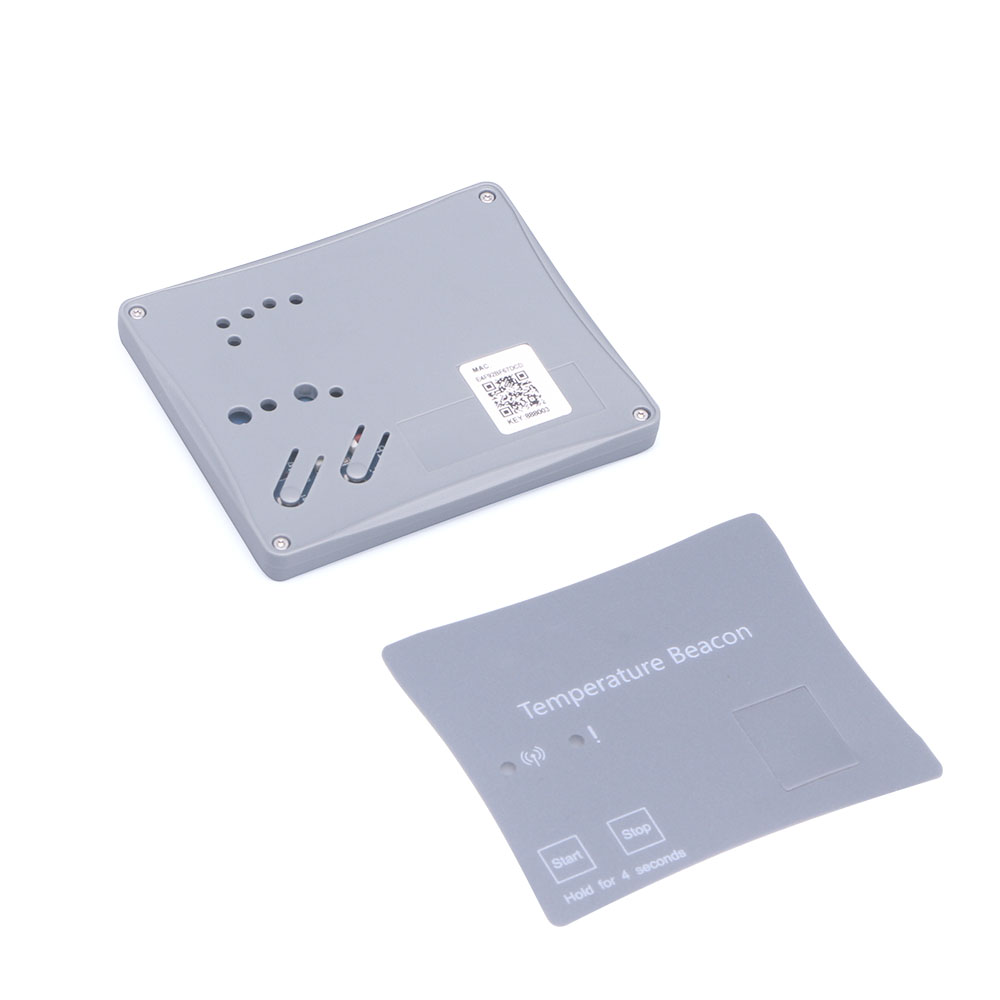

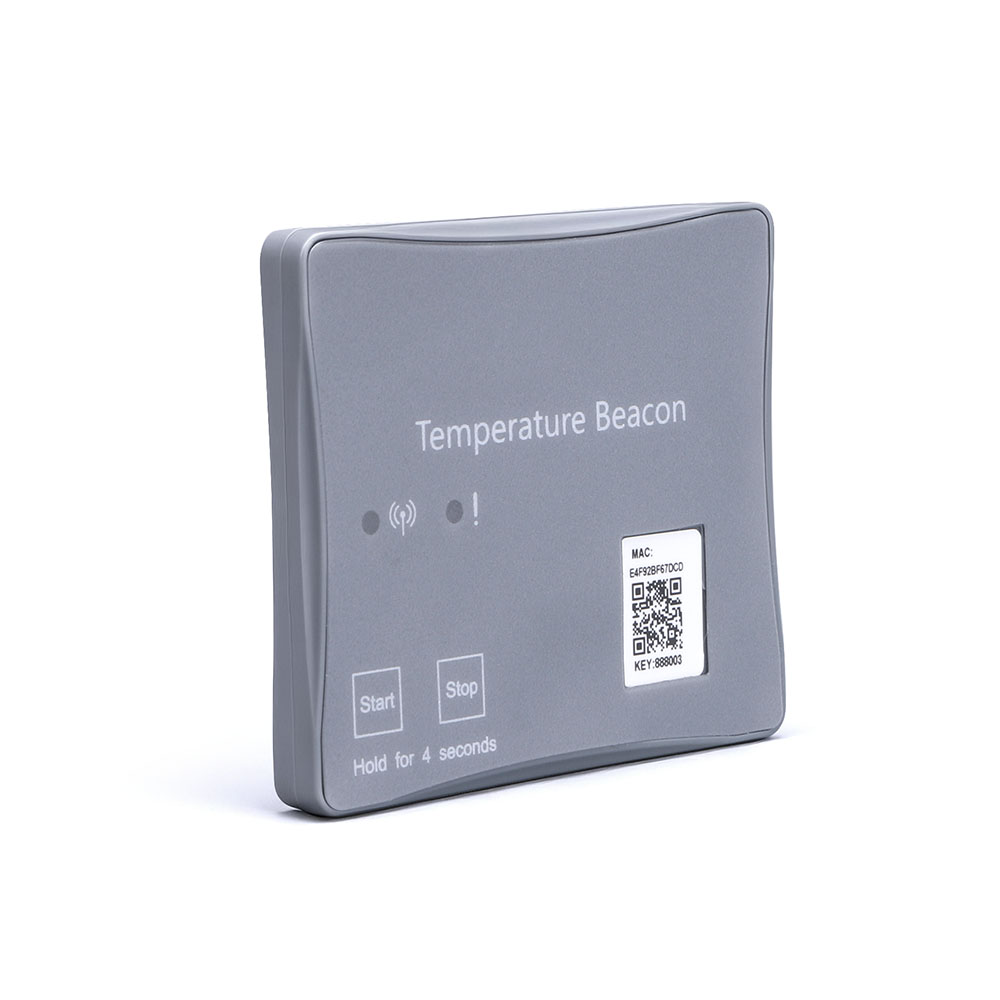

Temperature Beacon BLE Wireless Temperature Sensor for GPS Tracker Cold Chain Monitoring
This Temperature Beacon is a BLE wireless sensor matched for GPS trackers. It collects real-time ambient temperature data and sends readings to the paired GPS device. It supports temperature threshold alert for cold chain cargo, helping fleet managers monitor cargo condition remotely.
Características del producto
-
Multi‑point Temperature MonitoringPair with GPS tracker, monitor temperature at multiple spots in one vehicle. -
Long‑lasting Battery LifeUp to 6‑year standby, avoid frequent battery replacement troubles. -
Reliable Temperature AccuracyDeliver precise temperature readings for cold‑chain and cargo safety tracking. -
Remote Cloud Data UploadGPS host uploads temperature data to server, check records remotely anytime. -
Large‑capacity Local Data CacheStore temperature data locally, no data loss even with temporary signal loss.
- Especificaciones del producto
- Descargar (Manual / Catálogo)
Filtro
Device Information
|
Model
|
MTS100
|
|
Net Weight
|
27g
|
|
Dimensions
|
66.5 (L) × 56 (W) × 6.7 (H) mm
|
|
Weight
|
Approx. 70g / pcs
|
|
Color
|
Gray
|
|
LED Indicators
|
Blue LED – Power On；Red LED – Power Off
|
|
Ingress Protection
|
IP67 Waterproof & Dustproof
|
|
Application
|
Cold chain logistics, supply chain, warehouse, terminal & personal asset management, food & medicine temperature keeping, temperature IoT
|
Battery & Power
| Battery & Power | Lithium‑manganese battery, 1350 mAh |
| Battery Voltage | 3V DC |
| Average Current | 17 µA |
| Standby Current | 4 µA |
| Power‑off Current | 1.1 µA |
| Battery Life | Up to 6 years standby |
Wireless communication
| Bluetooth | BLE 5.0 |
| Broadcast Power | 8 dB |
| Broadcast Frequency | 5s |
| Transmission Range | Up to 500m（open environment） |

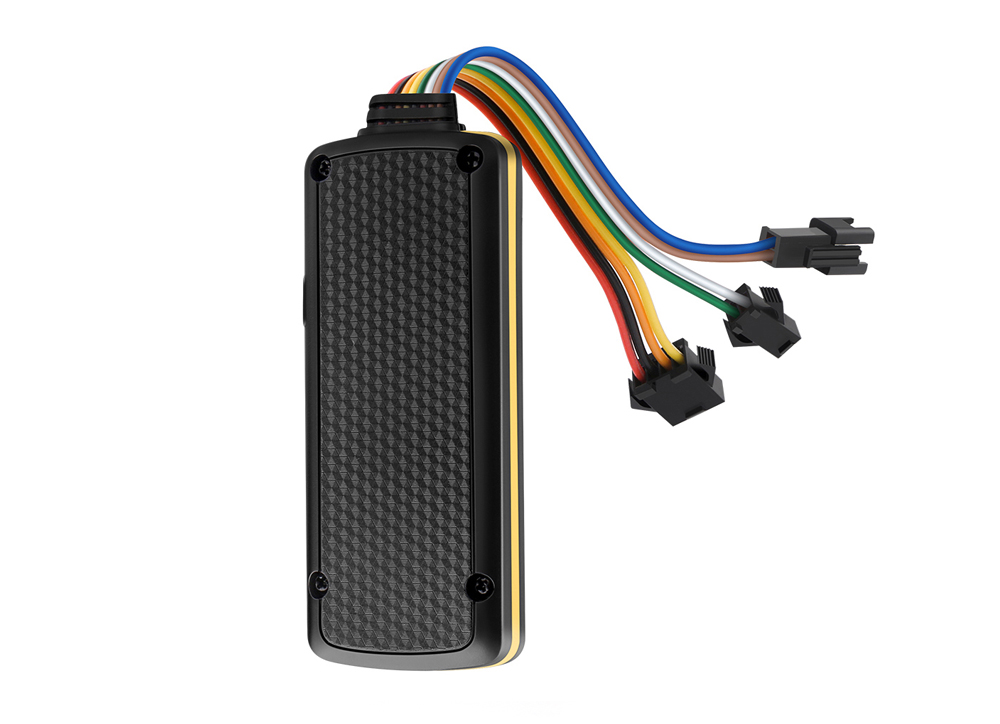

| Host Compatibility | One host supports up to 24 beacons（GPS host: ML208G / MV401G） |
| APP Connection | Sends data to phone via Bluetooth (MiCODUS APP) |
Sensor & Measurement
| Sensor Accuracy | ±0.5°C（0°C–65°C）；±1°C（−20°C–0°C） |
| Working Temperature | −20°C ~ 60°C |
| Storage Temperature | −30°C ~ 80°C |
Data Logging
| Local Data Cache | Up to half a year（default mode） |
| Recording Cycle | One record per 5 minutes（stores up to 4 days） |
| Recorded Data | Date & time + temperature + battery |
| Data Upload | GPS host uploads all beacon data to server remotely |
Escenarios de aplicación
