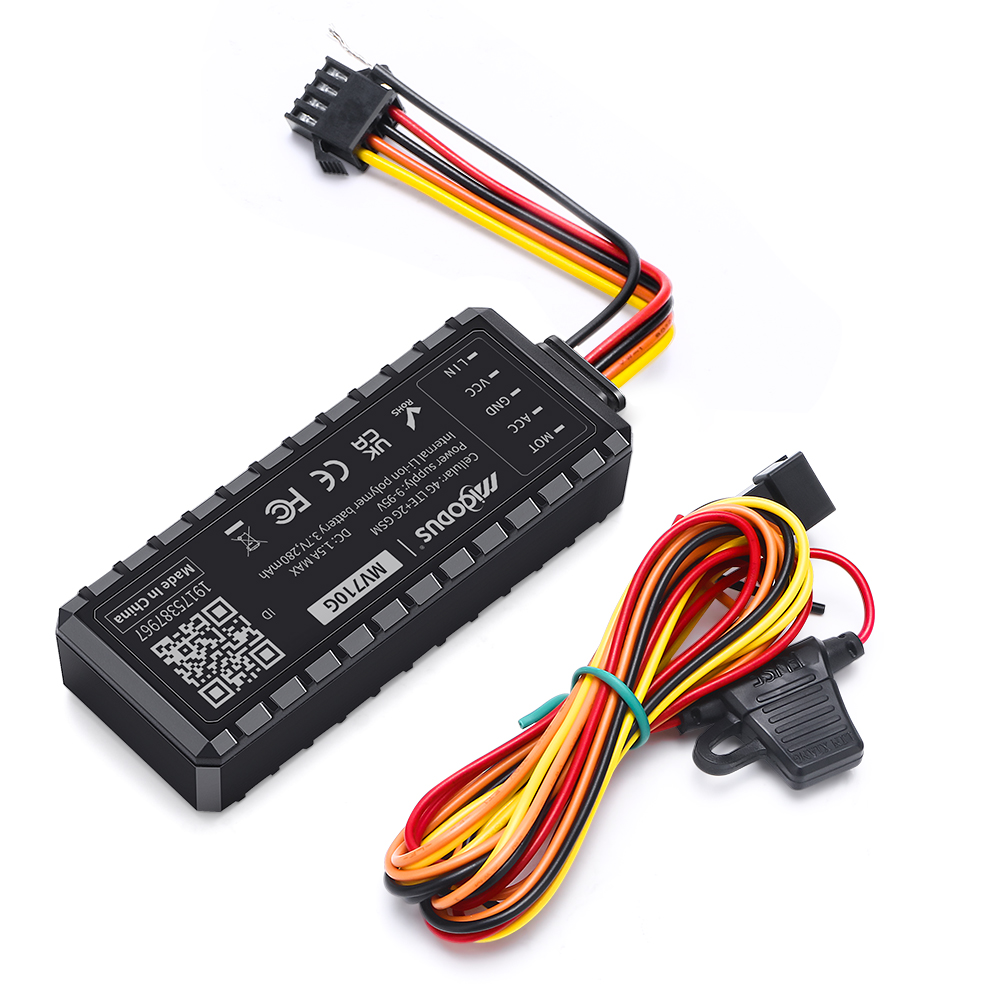

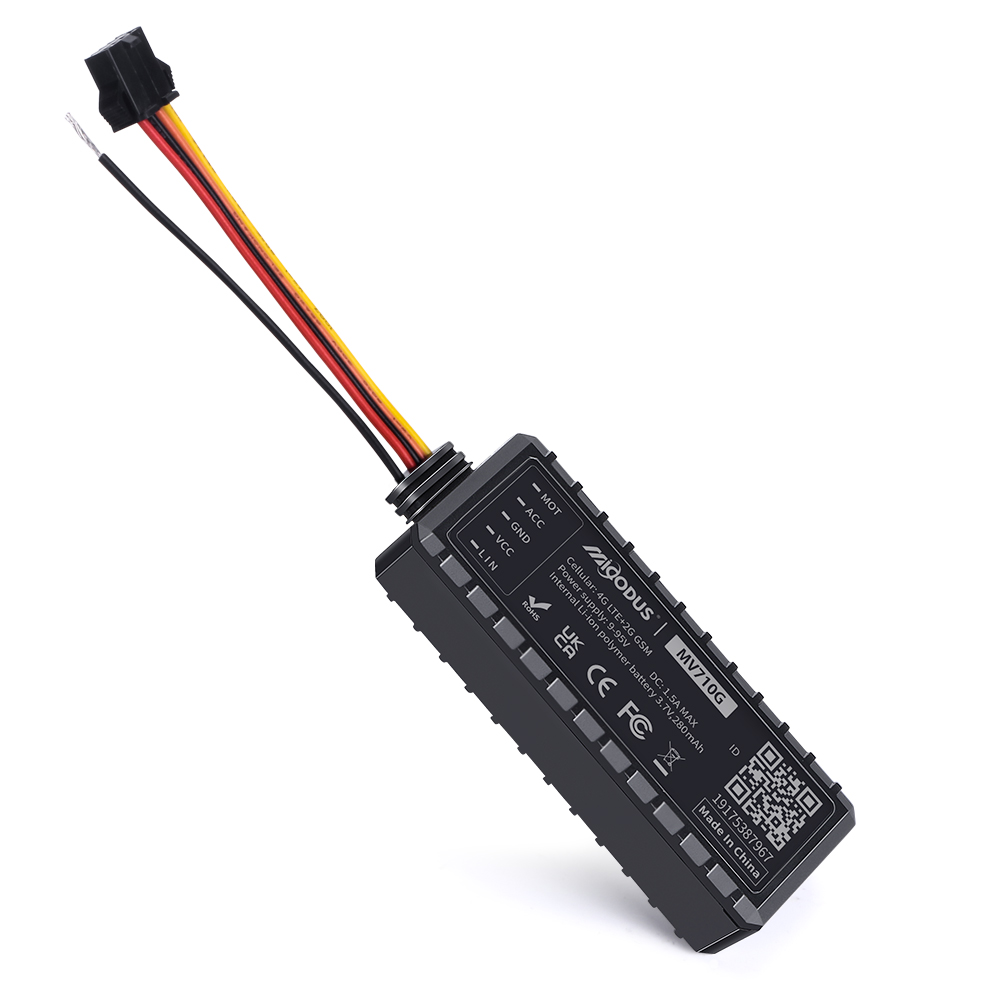

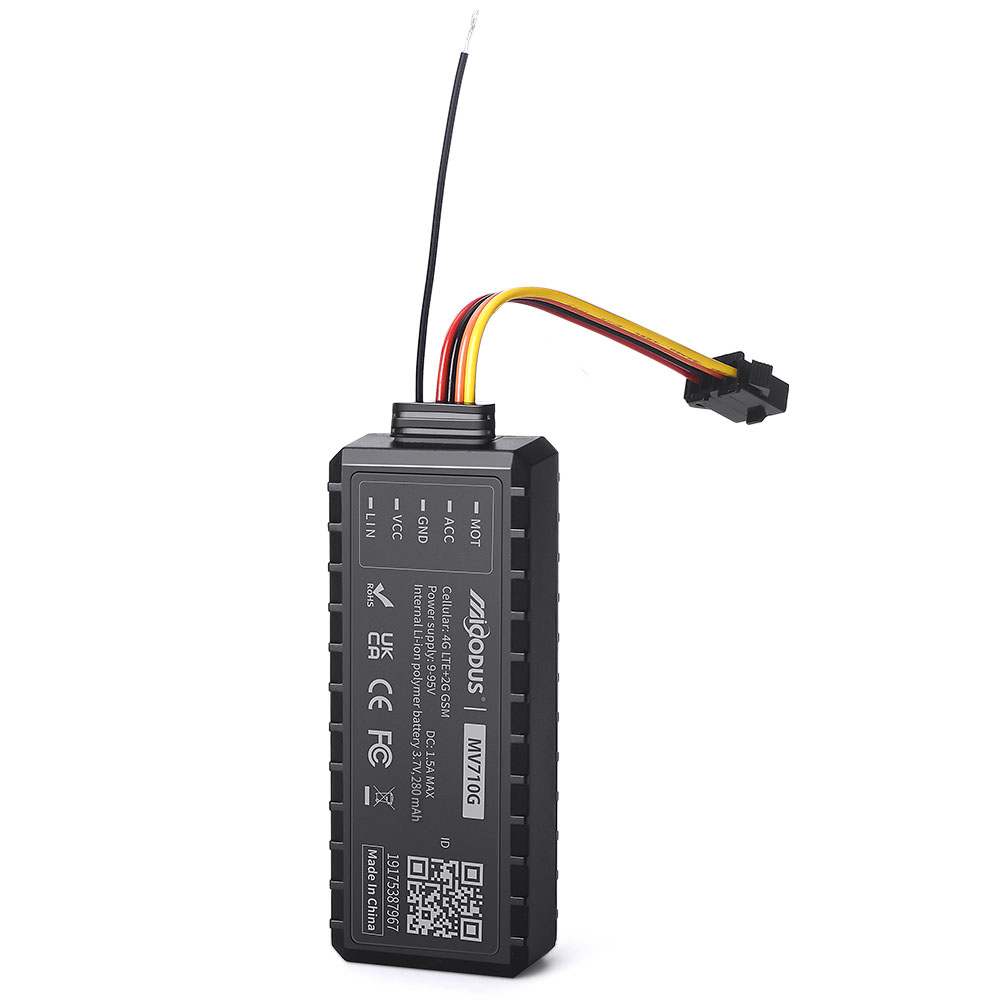

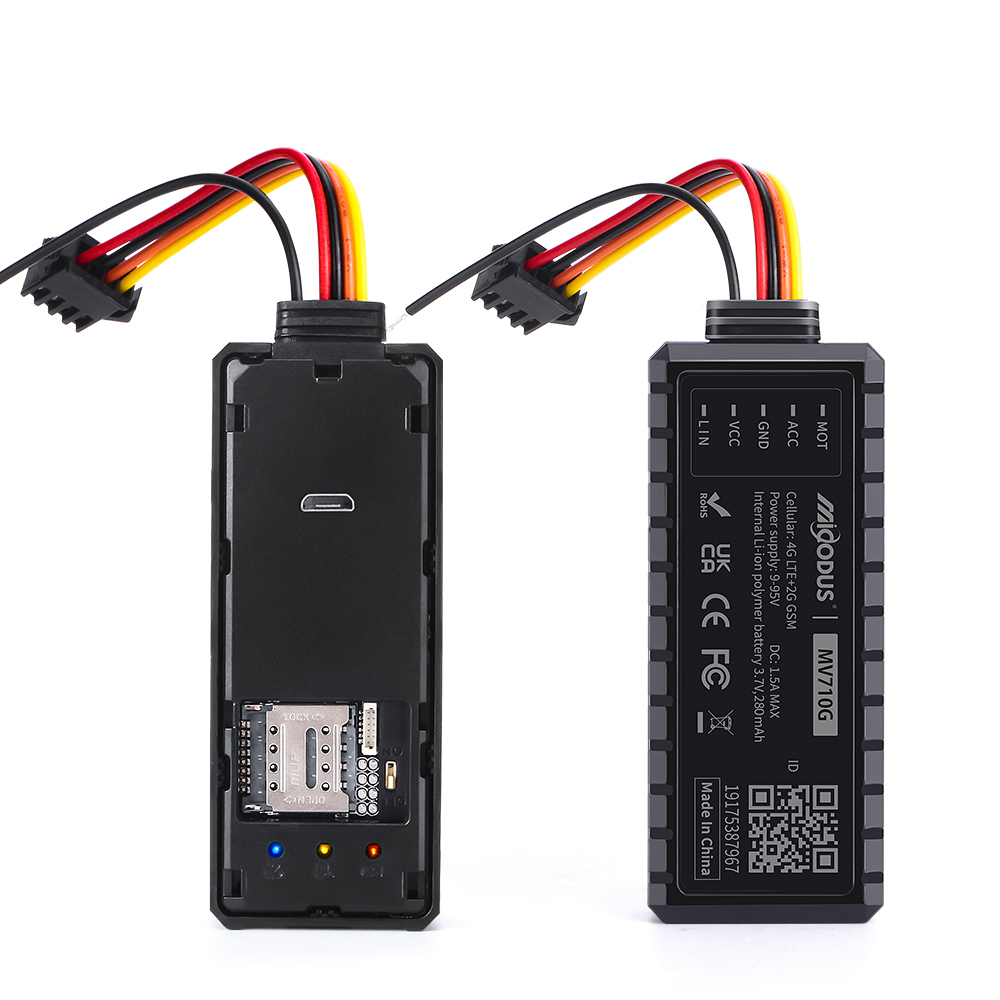

Cost-effective 4G Vehicle GNSS Tracker with Anti Jamming
The MV710G is a compact 4G LTE tracker with GPS+BDS+GLONASS for precise real-time tracking. Its key advantage is the 9-95V wide working voltage, compatible with both cars and heavy-duty vehicles—unlike most 12V-only rivals. It features remote fuel cut-off, vibration & door-open alarms, and low-voltage alerts for anti-theft protection. A built-in backup 380mAh battery ensures reliable tracking once external power disconnected. Ideal for fleet and personal vehicle security.
Características del producto
-
Anti JammingAuto fuel cut if thieves use jammer nearby when you’re away, preventing vehicle theft. -
Door Status DetectionMonitor and log vehicle door status to track door activity and spot unusual vehicle use. -
Open Door AlarmReceive instant alerts when your car door is opened. Detect unauthorized entry and safeguard your vehicle against theft. -
ACC Status DetectionCapture vehicle ACC status for accurate activity records and asset supervision. -

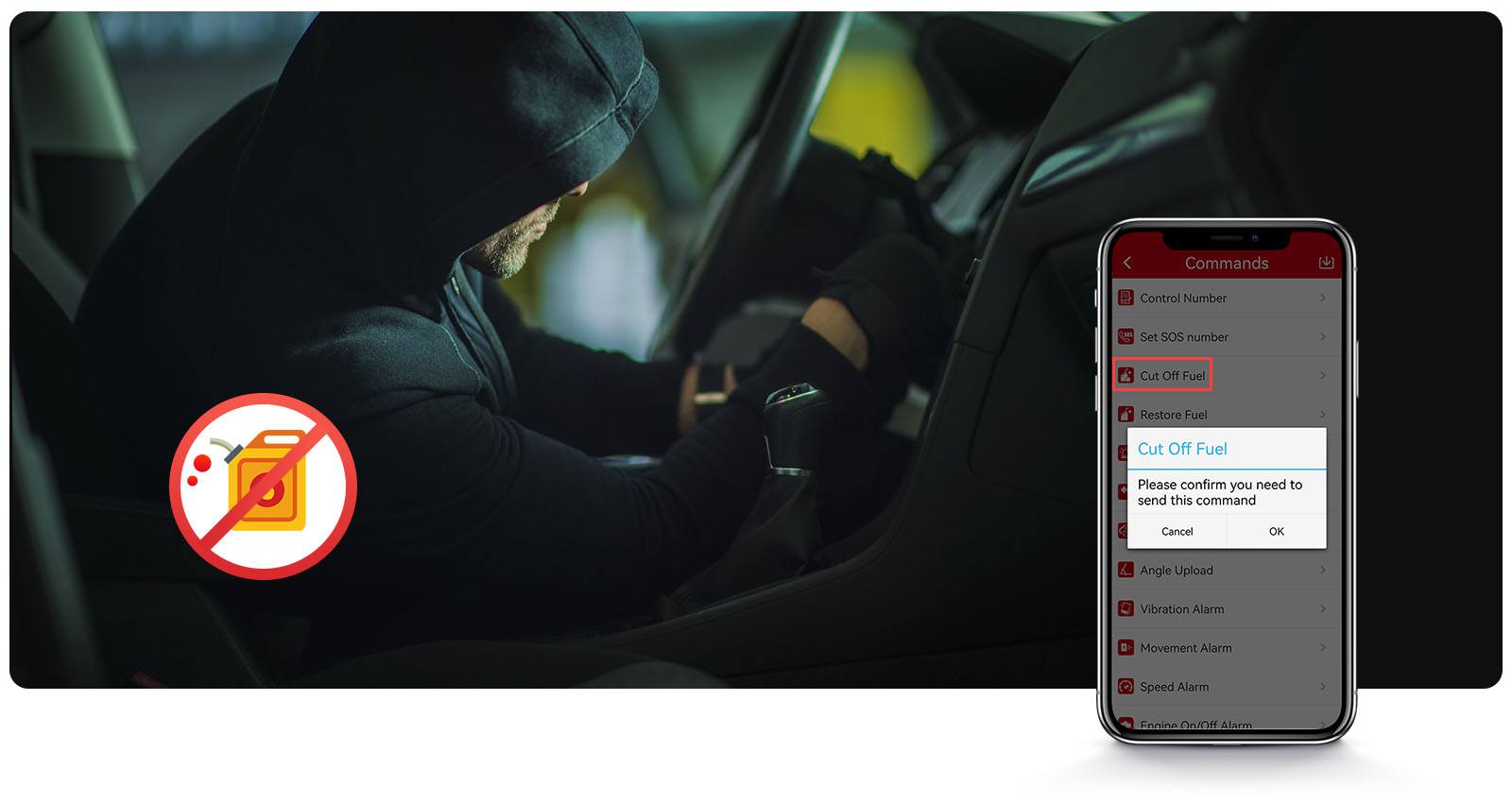

Remote Cut-off Fuel/PowerRemotely cut fuel or power for anti-theft protection and emergency safety control. -
Real-time TrackingMonitor your asset location live, keep full control all the time. -
Trajectory PlaybackReplay 180 days route to trace asset paths and secure your assets. -
Geo-fenceGet alerts for unauthorized zone crossings, restrict vehicle activity range. -
GNSS+LBS PositioningPrecise satellite positioning, LBS backup when satellite signals drop. -
Low Voltage AlarmMonitor car battery voltage, alert you early to avoid vehicle breakdown. -
Overspeed AlarmTrigger alerts when speed exceeds limit, manage reckless driving risks. -

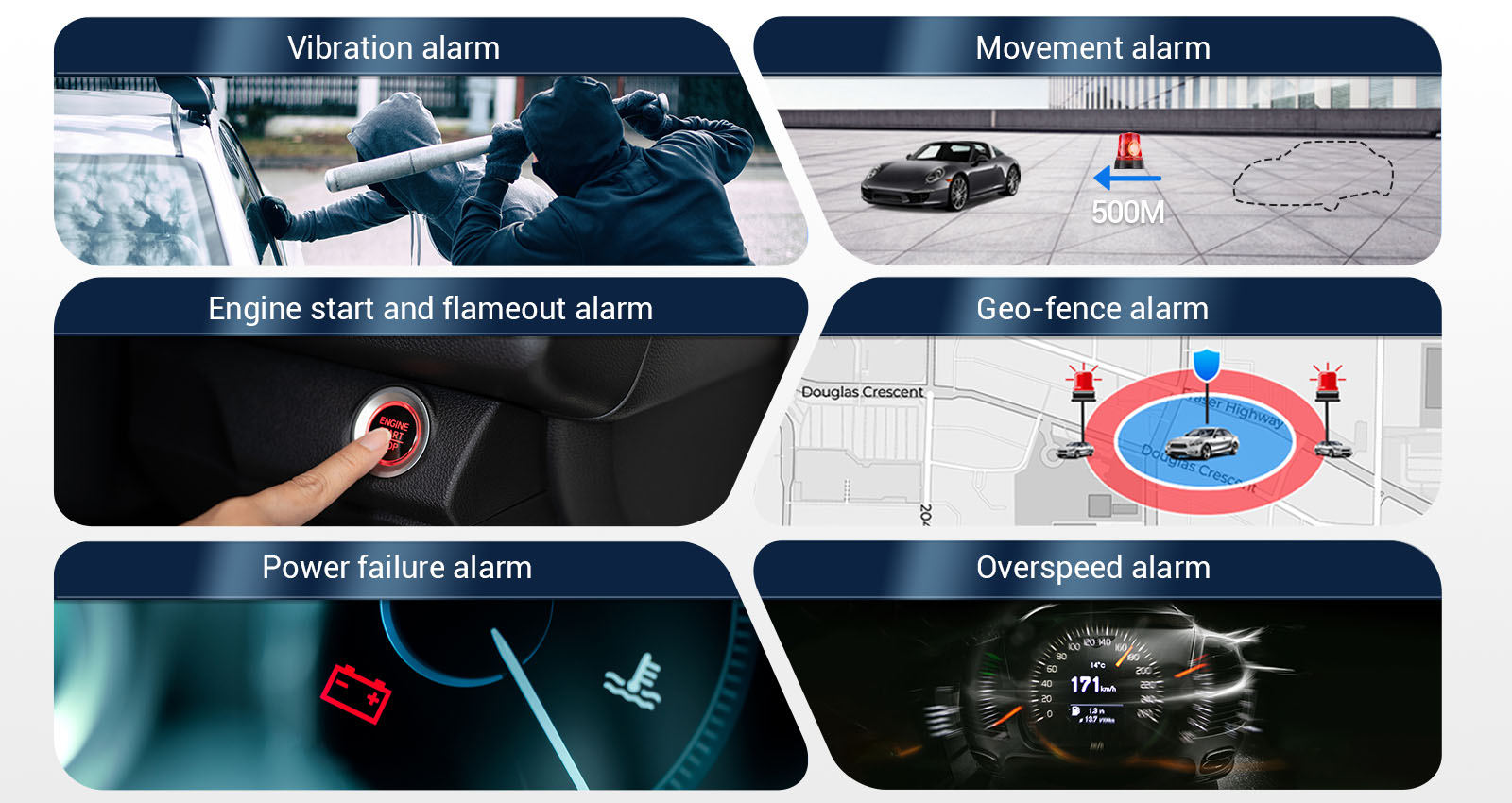

Multiple Anti-theft AlarmsMovement, vibration, wire‑cut and ignition status alarms to guard your vehicle around the clock.
- Especificaciones del producto
- Características clave
- Descargar (Manual / Catálogo)
Filtro
Device Param
|
Model
|
MV710G
|
|
Demension
|
79mm(L)*33mm(W)*16mm(H)
|
|
Weight
|
40g
|
|
Working Voltage
|
DC 9V - 95V
|
|
Working Temperature
|
-20℃ - 75℃
|
|
Working Humidity
|
10%-85%RH
|
|
Built-in Memory
|
3000pcs GPS data can be stored at network blind area
|
GNSS
|
Hot/Cold Start
|
<1s，<32s @ Open Sky
|
| Tracking sensitivity | -162 dBm |
| GPS Channels | 32 |
| GNSS Antenna |
Built in ceramic dielectric antenna, 18*18*4mm
|
| Positioning Type | GPS+BDS+GLONASS+LBS+AGPS |
|
GPS Frequency
|
L1: 1575.42±1.023MHz
|
|
BDS Frequency
|
B1:1561.098±2.046MHz
|
|
Accurancy |
<10m（1σ）
|
Cellular
| Technology |
2G GSM+4G LTE CAT1
|
|
Working Frequency
|
MV710G-SA
Module: SIMCOM A7670SA
GSM: 850/900/1800/1900MHz
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
|
|
MV710G-EU
Module: SIMCOM A7670E
GSM: 900/1800MHz
LTE-FDD: B1/B3/B5/B7/B8/B20
|
|
| Cellular Antenna |
Built-in, FPC
|
Power
| Battery |
3.7V 280mAh Lion Polymer battery |
|
Work Current |
12V/average 35mA
|
|
Sleep Current |
12V/average 10mA
|

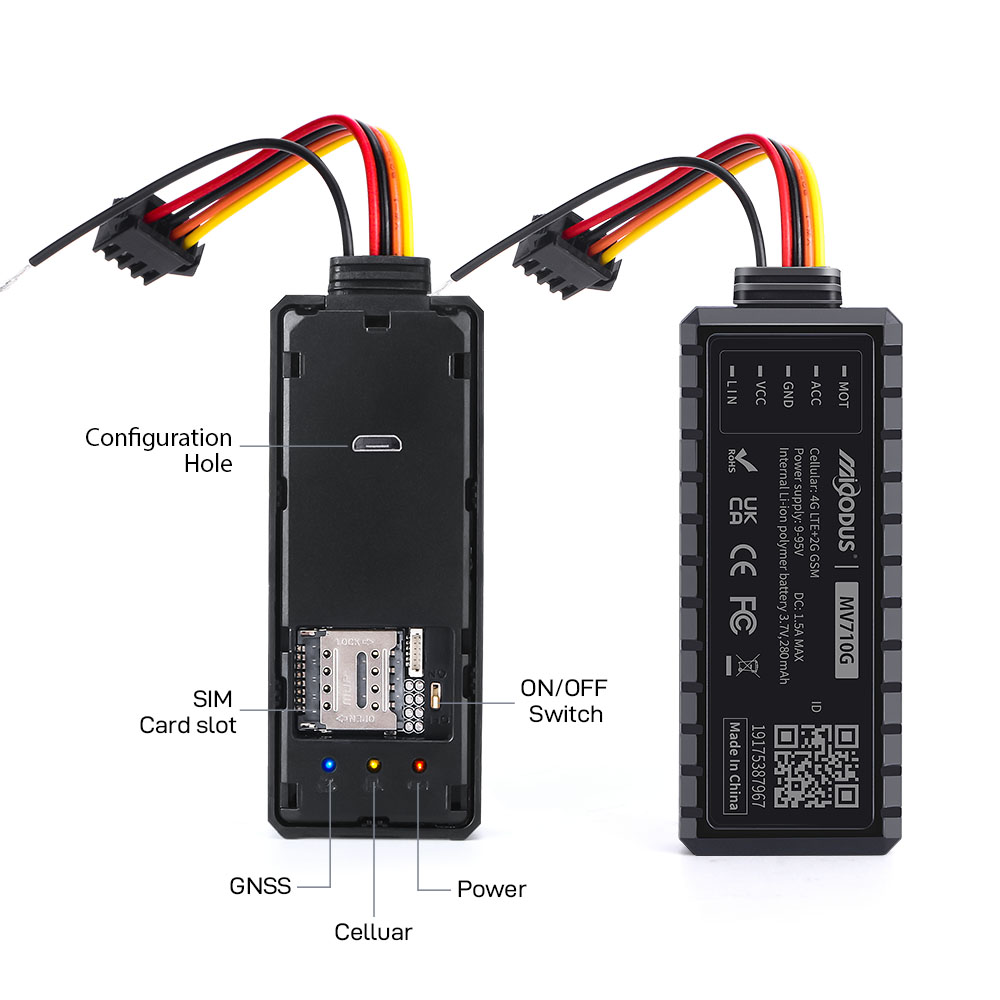

Interface
| Digital Input |
1 x digital input for door sensor |
| 1 x digital input for ignition detection | |
| Digital Output | 1 x digital output for cut off oil |
| SIM Card | Micro SIM Card |
| Firmware Upgrade | OTA & UART Serial Upgrade |
| LED indication |
GSM LED |
| Charging LED | |
| GPS LED |
Certification
| Regulatory | CE, RoHS, FCC, UKCA, ISED |
