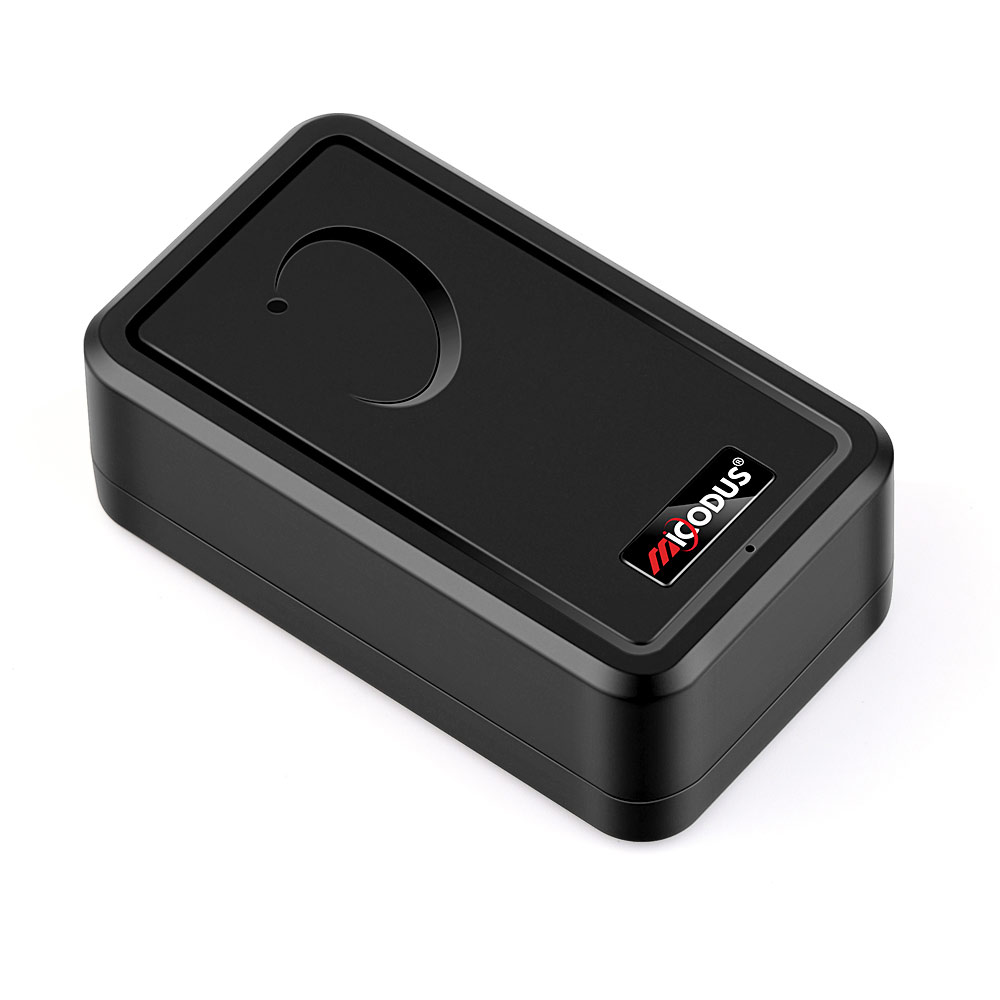

4G Asset Tracker with 35-Day Battery & Powerful Magnet
The ML500G stands out with a 5000mAh battery lasting up to 35 days and a super strong built-in magnet for tool-free mounting—far easier than wired rivals. It offers IP65 waterproofing, voice monitoring, temperature sensing, and Geo-fence/vibration/shift/teardown alarms. With 4G LTE, GPS+GLONASS+BDS+AGPS, and three working modes, it's ideal for asset and fleet tracking.
Características del producto
-
Temperature MonitoringTrack real-time temperature, secure fragile and perishable cargo in transit. -
Remote Voice MonitoringRemotely listen to onsite sounds, confirm safety around tracked assets. -
IP65 WaterproofResist splashing water and dust, stable for outdoor use. -

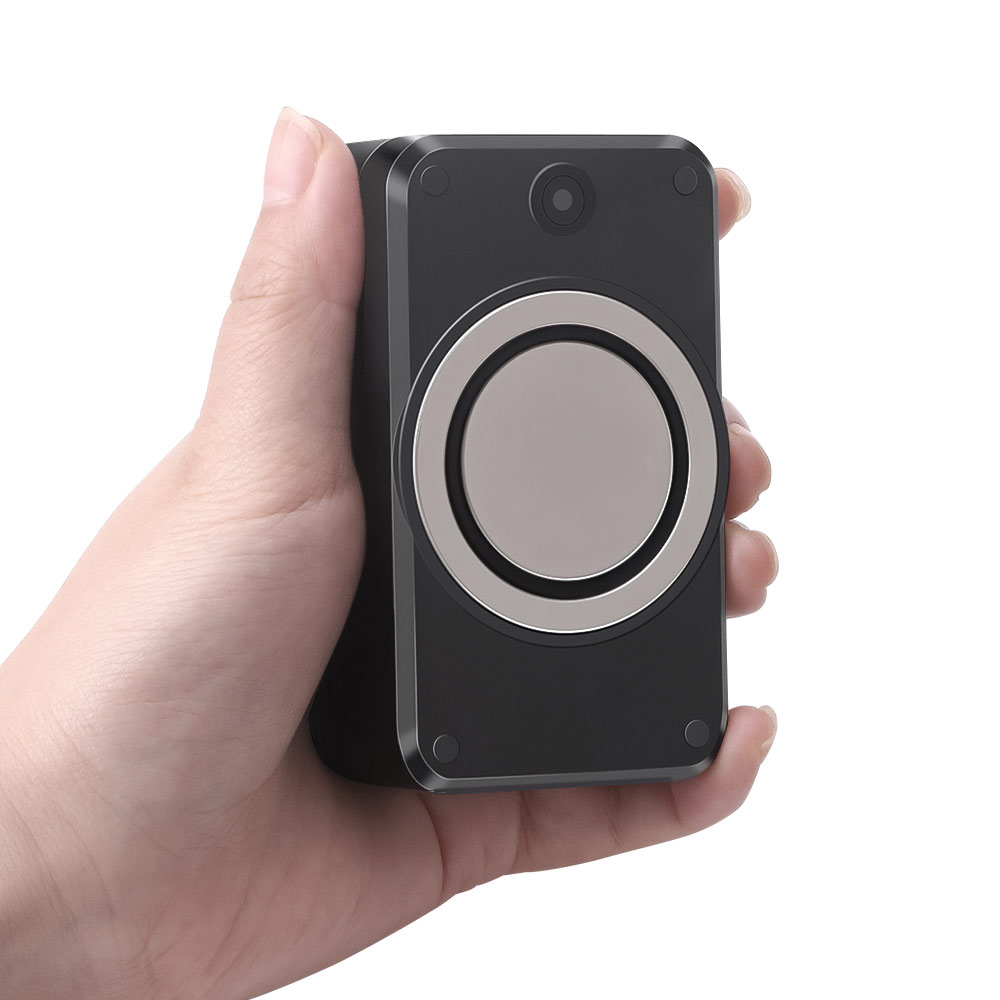

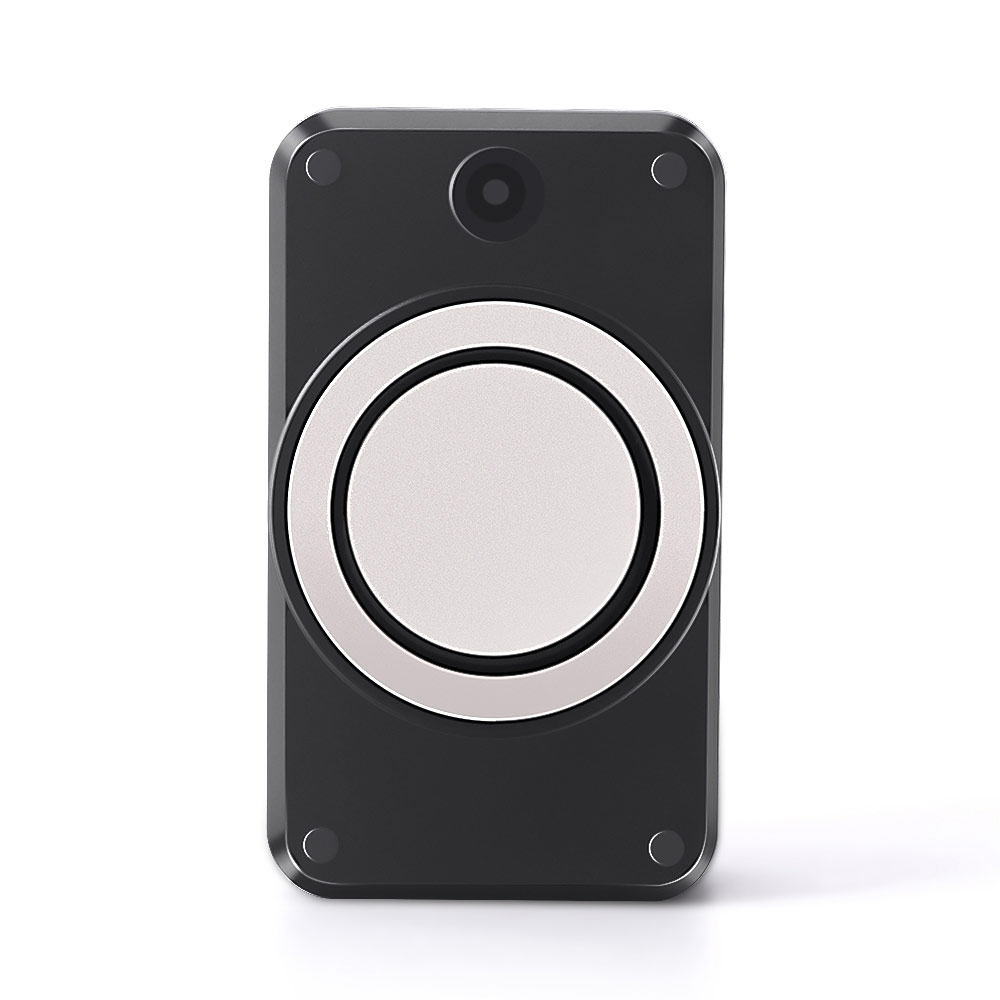

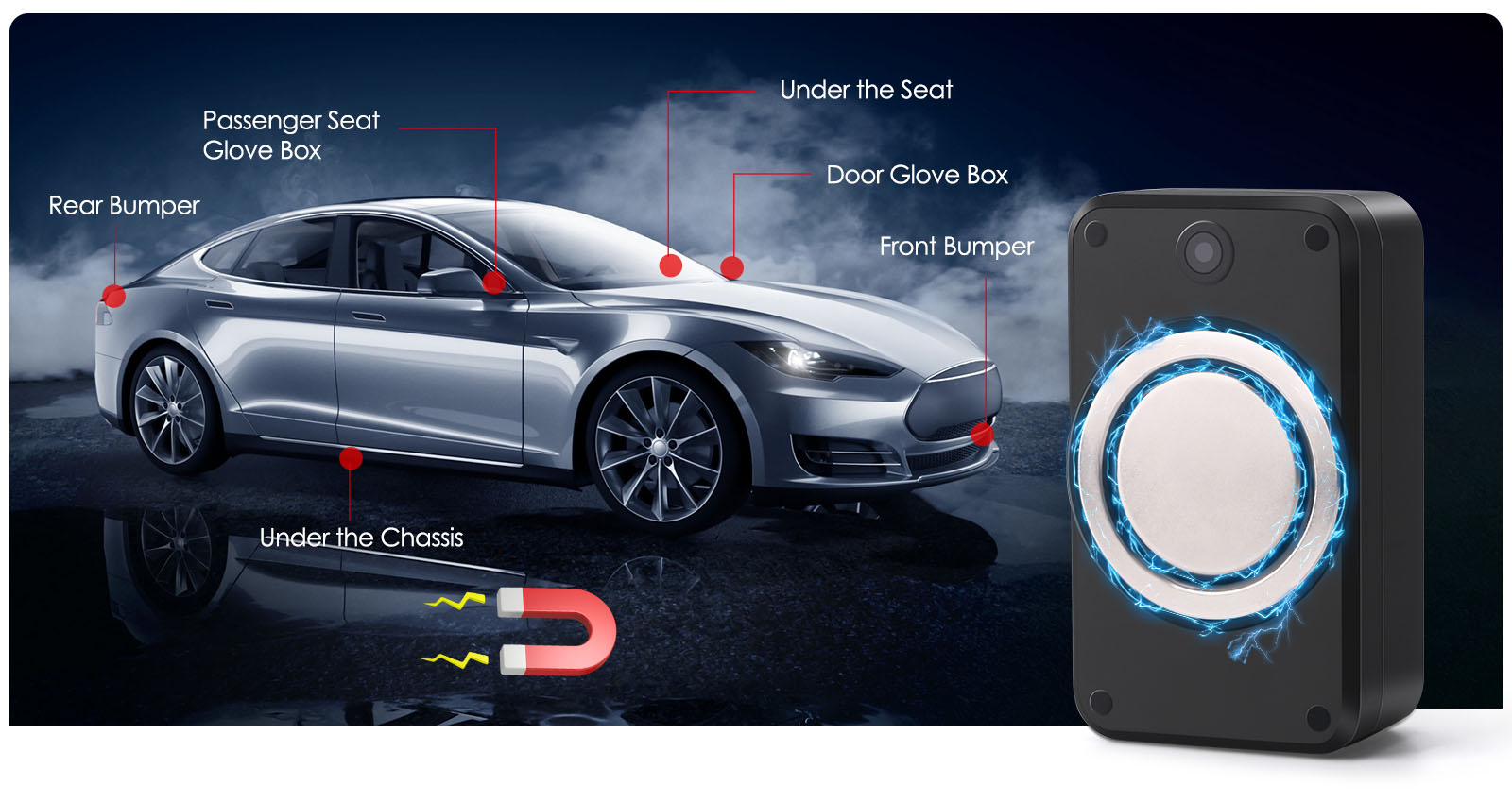

Strong MagneticPowerful magnet for easy attachment and removal without drilling. -
Trajectory PlaybackReplay 180 days route to trace asset paths and secure your assets. -
Geo-fenceGet alerts for unauthorized zone crossings, restrict vehicle activity range. -
Real-time TrackingMonitor your asset location live, keep full control all the time. -
GNSS+LBS PositioningPrecise satellite positioning, LBS backup when satellite signals drop. -
Teardown AlarmSends alert on disassembly, guarding against tampering or accidental detachment. -
Low Battery AlarmAlert you to recharge in time and avoid tracking interruption. -
Type-C Fast ChargingUniversal Type-C port enables quick power refill and cuts device downtime. -
Multiple AlarmsMovement, vibration and overspeed alarms to guard your vehicle around the clock.
- Especificaciones del producto
- Características clave
- Descargar (Manual / Catálogo)
Filtro
Device Param
|
Model
|
ML500G
|
|

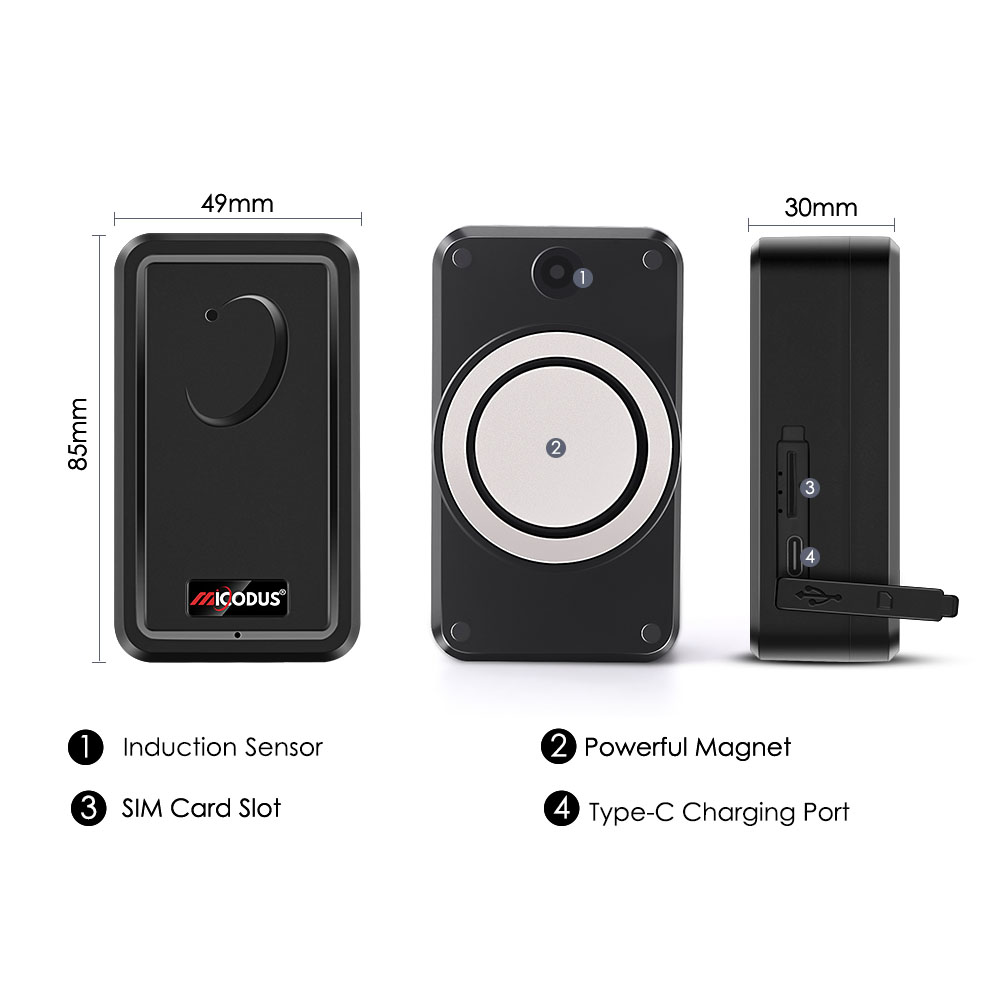

Demension
|
85mm(L) * 49mm(W) * 30mm(H)
|
|
Weight
|
172g
|
|
Working Voltage
|
DC 3.4V - 4.5V
|
|
Working Temperature
|
-20℃ - 75C℃
|
|
Working Humidity
|
10%-85%RH
|
|
Built-in Memory
|
5000pcs GPS data can be stored at network blind area
|
GNSS
| Cold Start | ≤32 Seconds |
| Hot Start | ≤1 Second |
| GNSS Antenna | Built-in |
| Positioning Type | GPS+GLONASS+BEIDOU+LBS+AGPS |
|
Tracking Sensitivity |
-162dBm |
|
GPS Channels |
64 |
|
Accurancy |
5-10m |
Cellular
|
Technology |
2G GSM+4G LTE CAT1 |
|
Working Frequency |
ML500G-SA
Module: SIMCOM A7670SA
GSM: 850/900/1800/1900MHz
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
|
|
ML500G-EU
Module: SIMCOM A7670E
GSM: 900/1800MHz
LTE-FDD: B1/B3/B5/B7/B8/B20
|
|
|
ML500G-Global
Module: SIMCOM A7670G
GSM: 850/900/1800/1900MHz
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41
|
|
| Cellular Antenna | Built-in |
Power
| Battery |
3.7V 5000mAh Lion Polymer battery |
| Charging Time |
About 7 hours |
|
Working Current |
4V/Average 45mA |
|
Dormant Current |
4V/less than 5mA |
|
Standby Time |
Tracking Mode: Around 7-10 Days |
|
Power Saving Mode: Around 25 Days |
|
|
Hibernate Mode: Around 35 Days |
Interface

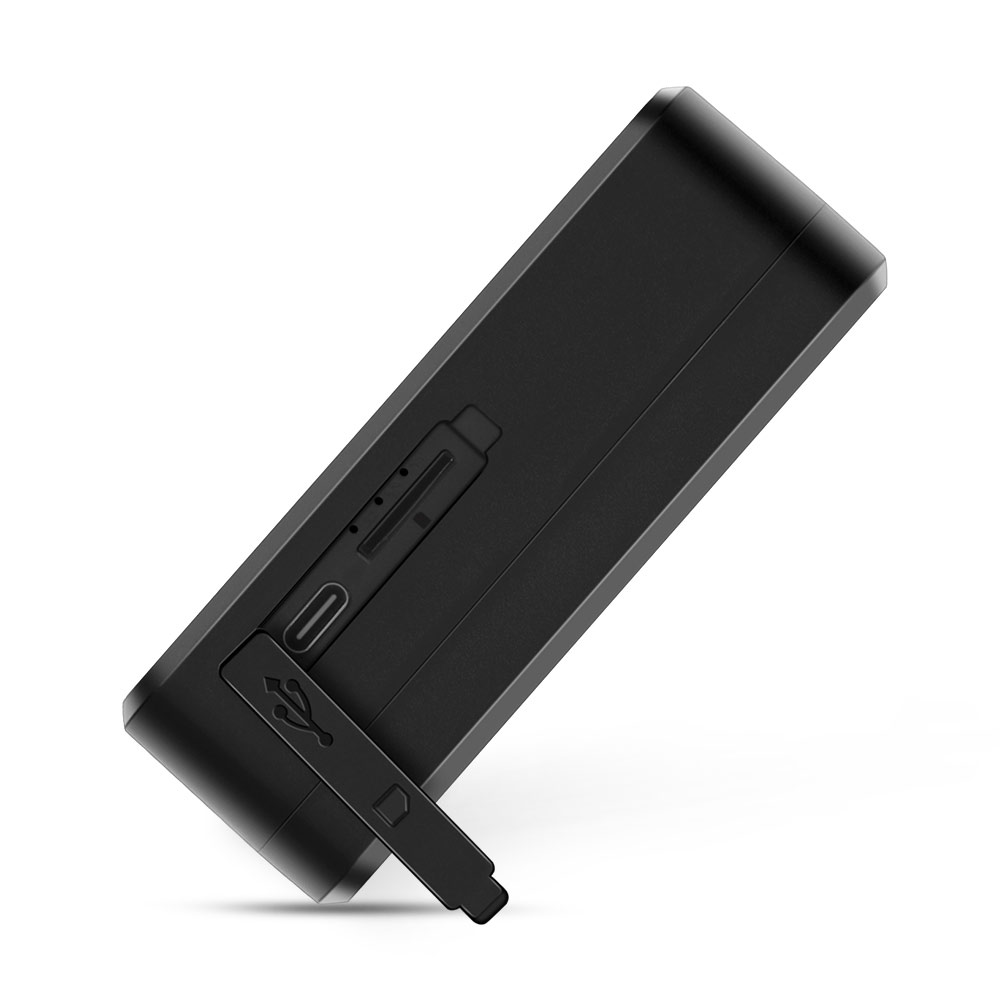

| SIM Card | Micro SIM Card |
| Firmware Upgrade | OTA & UART Serial Upgrade |
| Charging | Type-C Interface |
| LED indication |
GSM LED |
| Charging LED | |
| GPS LED |
Certification
| Regulatory | CE, RoHS, FCC, UKCA, ISED |
