2G Relay GPS Tracker – Hidden Design & Remote Fuel Cut-Off

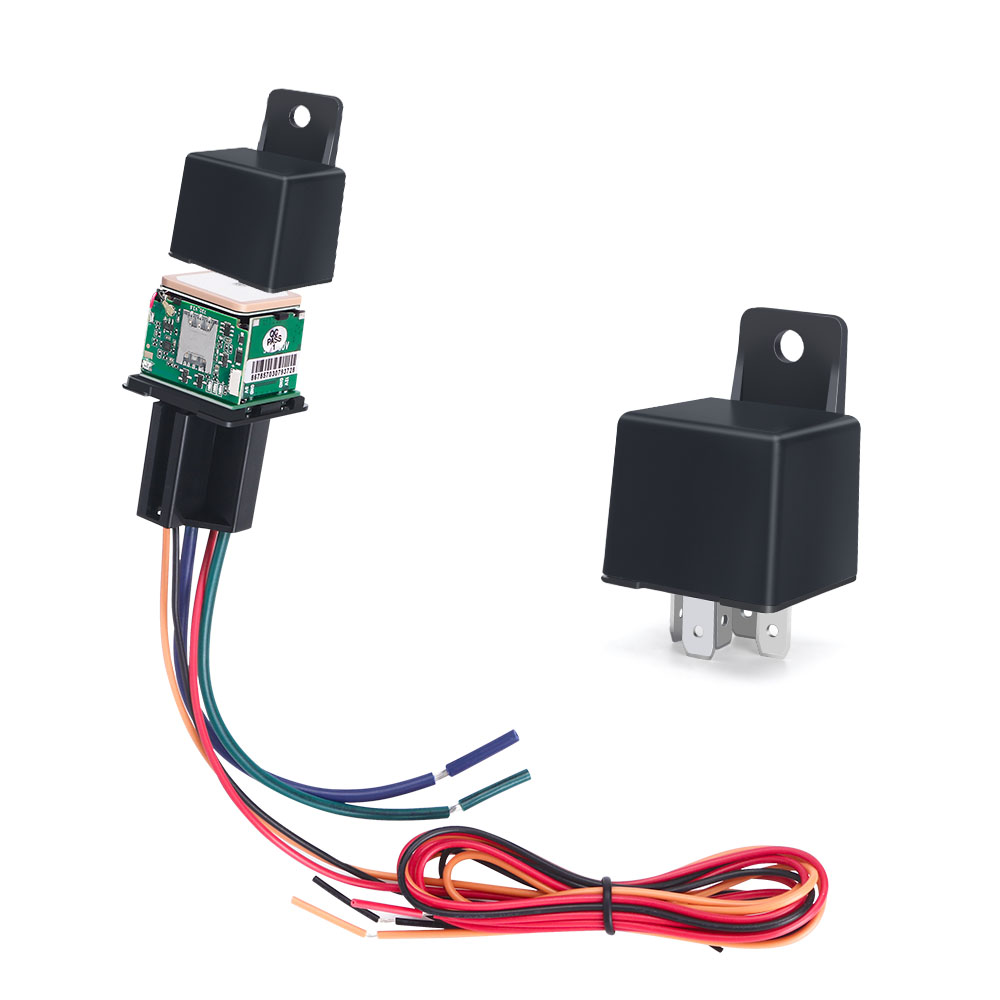

The MV730 stands out with a relay-style hidden design, installing discreetly inside the vehicle to evade thieves—a unique edge over standard trackers. It offers remote fuel cut-off with intelligent speed-based safety, Geo-fence, engine on/off alarms, vibration alerts, and 9-90V wide voltage. With GPS+GLONASS+BDS+AGPS positioning and 64 channels, it delivers dependable covert anti-theft protection for cars and motorcycles.
Características del producto
-

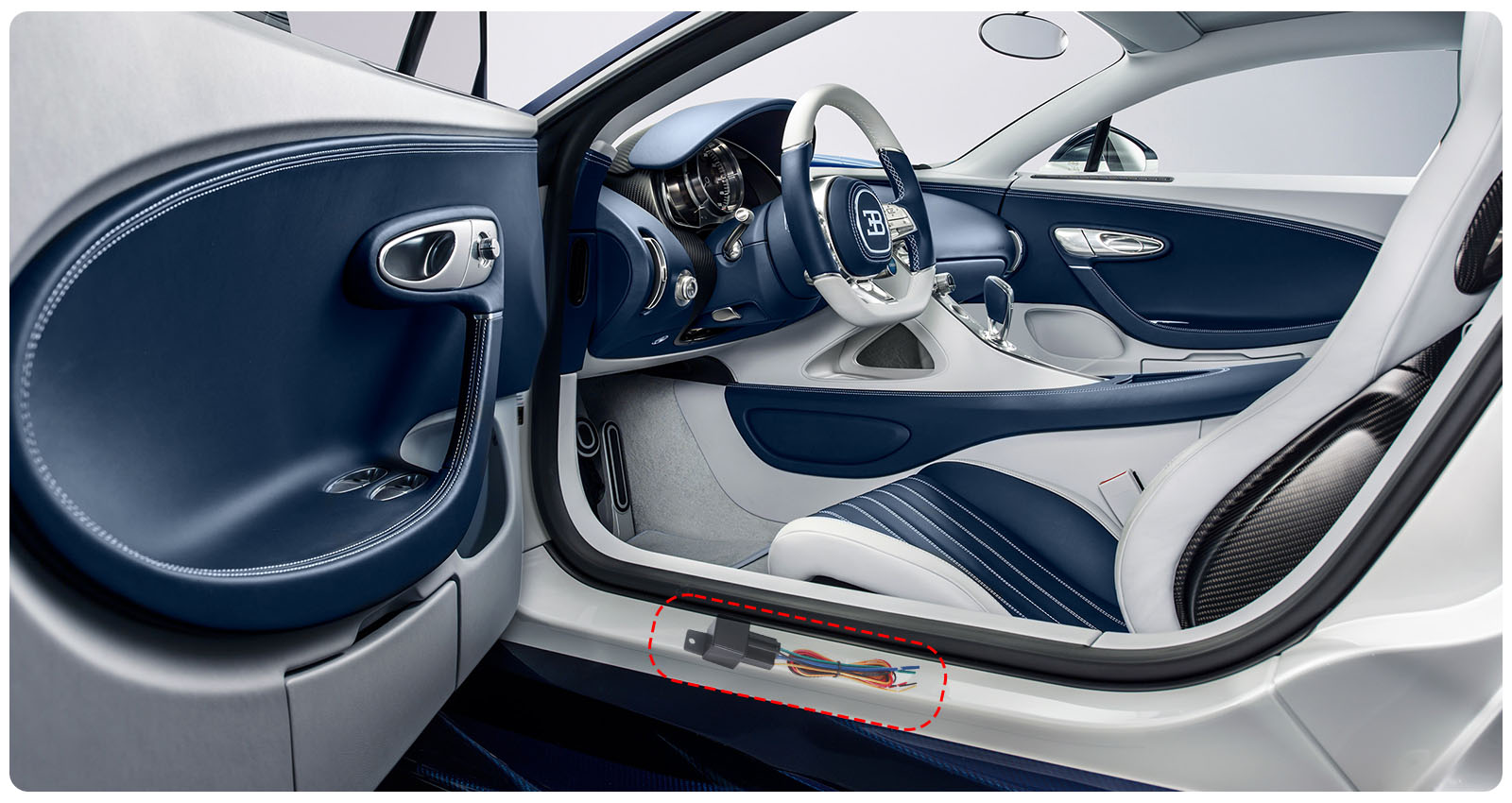

Hidden DesignRelay-shaped appearance to hide tracker and avoid discovery. -

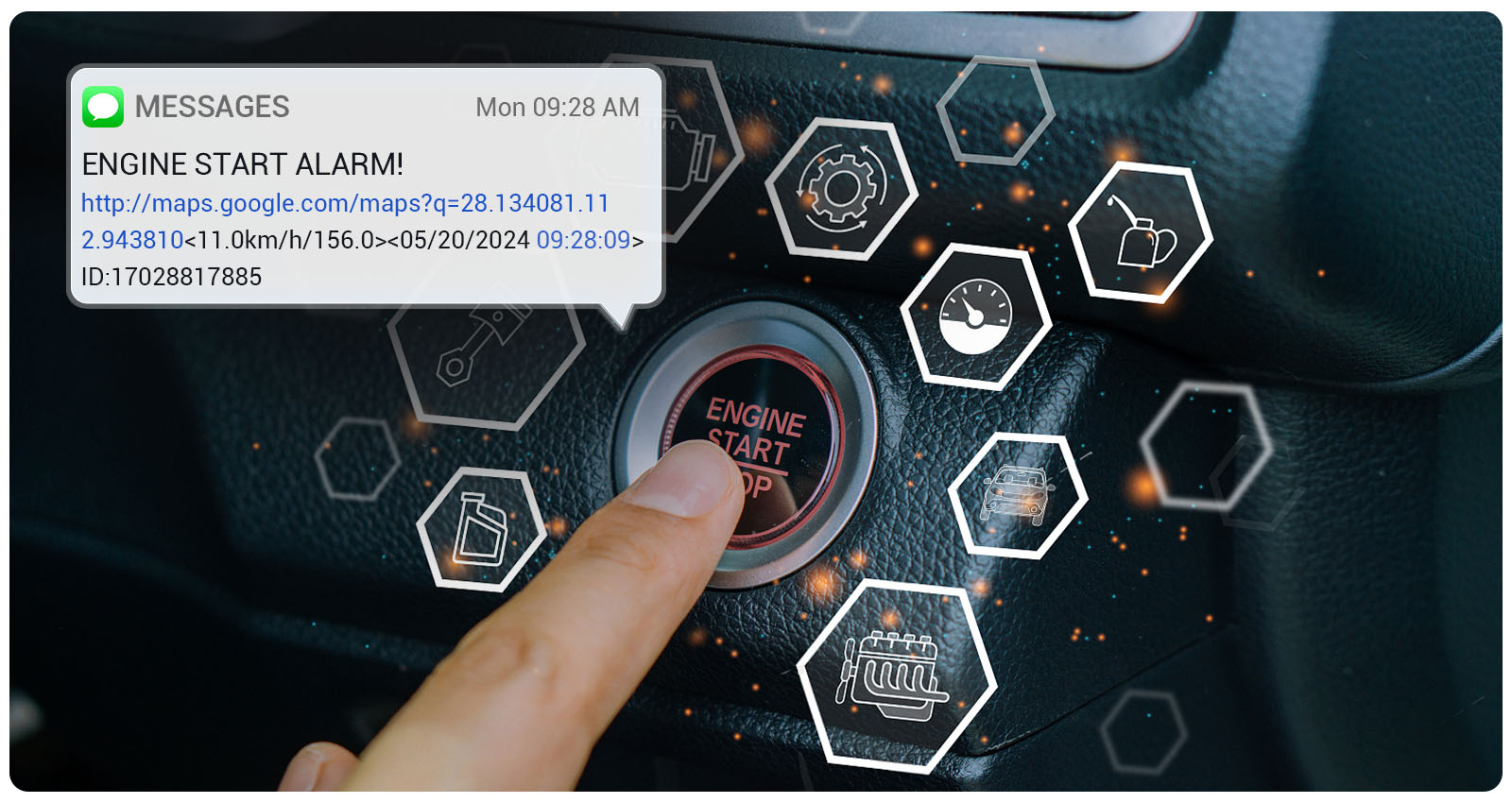

ACC Status DetectionCapture vehicle ACC status for accurate activity records and asset supervision. -
Ignition On‑Off AlarmReceive instant alerts when your vehicle ignition turns on or off. Catch unauthorized activity and safeguard your car against theft. -

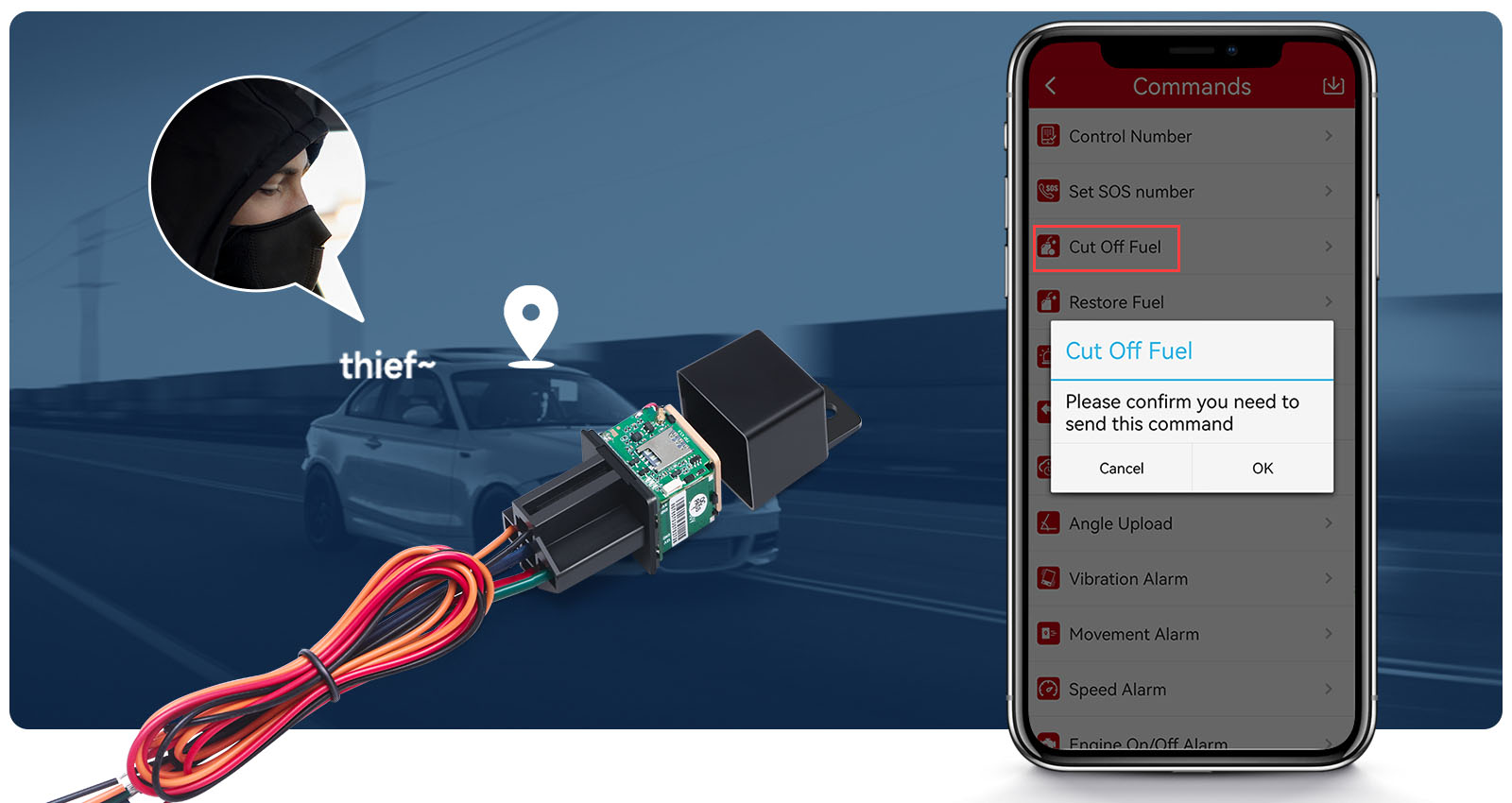

Remote Cut-off Fuel/PowerRemotely cut fuel or power for anti-theft protection and emergency safety control. -
Tow AlarmNotify you right away when your car gets towed illegally so you can take timely action. -
Overspeed AlarmTrigger alerts when speed exceeds limit, manage reckless driving risks. -
Vibration AlarmTrigger alerts on abnormal vibration, prevent vehicle tampering. -
Movement AlarmGet alerted the moment your vehicle moves, perfect for parking security. -
Real-time TrackingMonitor your asset location live, keep full control all the time. -
Trajectory PlaybackReplay 180 days route to trace asset paths and secure your assets. -
Geo-fenceGet alerts for unauthorized zone crossings, restrict vehicle activity range. -
GNSS+LBS PositioningPrecise satellite positioning, LBS backup when satellite signals drop.
- Especificaciones del producto
- Características clave
- Descargar (Manual / Catálogo)
Filtro
Device Param
|
Model
|
MV730
|
|
Demension
|
31mm(L) * 31mm(W) * 57mm(H)
|
|
Weight
|
53g
|
|
Working Voltage
|
DC 9V - 90V
|
|
Working Temperature
|
-20℃ - 75℃
|
|
Working Humidity
|
10%-85%RH
|
|
Built-in Memory
|
1000pcs GPS data can be stored at network blind area
|
GNSS
|
Cold Start
|
≤32 Seconds
|
|
Hot Start
|
≤1 Second
|
| Tracking sensitivity | -162 dBm |
| GPS Channels | 64 |
| GNSS Antenna |
Built-in Ceramics GNSS Antenna
|
| Positioning Type | GPS+GLONASS+LBS+AGPS |
|
Accurancy |
5-10m
|
Cellular
|
Technology
|
2G GSM
|
|
Working Frequency
|
GSM: 850/900/1800/1900MHz
|
| Cellular Antenna |
Built-in
|
Power
| Battery |
3.7V 45mAh Lion Polymer battery |
|
Working Current |
<30 mA
|
|
Sleep Current |
<15 uA
|
Interface
| Digital Input | 1 x digital input for ignition detection |
| Digital Output | 1 x digital output for cut off oil |
| SIM Card | Nano SIM Card |
| Firmware Upgrade | OTA & UART Serial Upgrade |

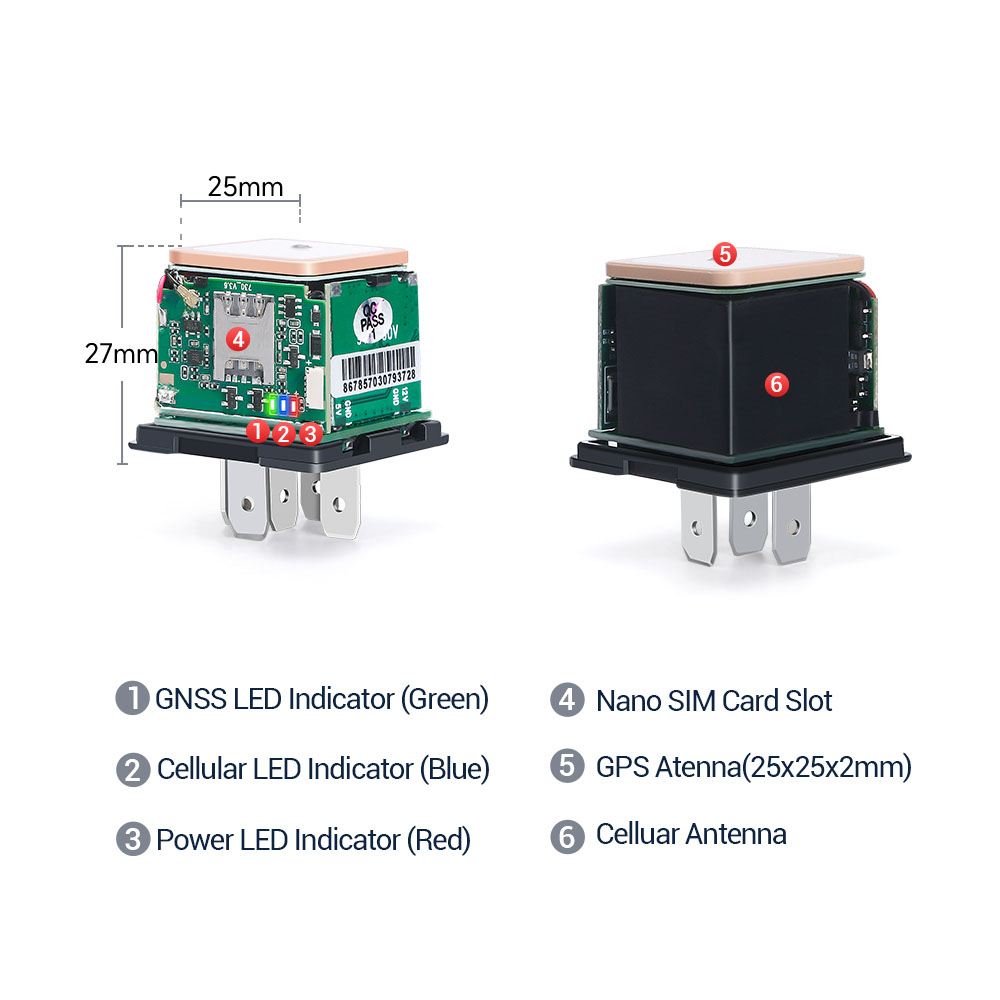

| LED indication |
GSM LED |
| Charging LED | |
| GPS LED |
Certification
| Regulatory | CE, RoHS, FCC, UKCA, ISED |
