4G OBD GNSS Tracker – Plug & Play with WiFi Hotspot
The MV55G PRO stands out as a plug-and-play OBD2 tracker requiring zero wiring—just plug it in. It uniquely combines CANBus data reading (Speed, RPM, Fuel, Fault codes etc) with voice monitoring and WiFi hotspot sharing. Supporting 9-50V wide voltage, it works with 99% of OBD vehicles. Includes 4G tracking and multiple anti-theft alarms.
Características del producto
-
CANbus DiagnosticFetch vehicle CAN bus data to monitor vehicle status. -

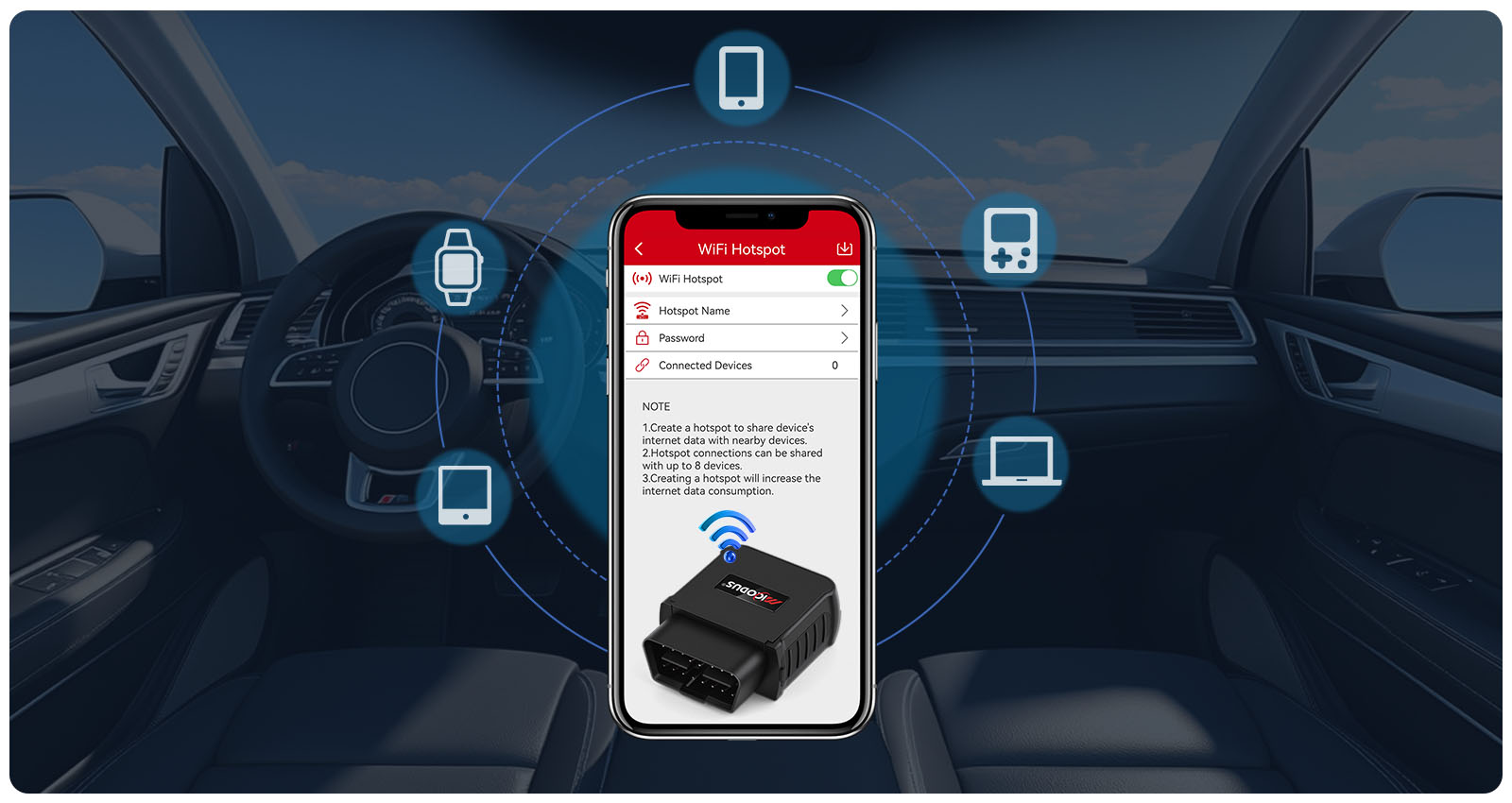

WiFi Hotspot SharingShare tracker SIM data for your electronic devices to access the internet. -
Remote Voice MonitoringRemotely listen to onsite sounds, confirm safety around tracked assets. -
ACC Status DetectionCapture vehicle ACC status for accurate activity records and asset supervision. -
Fault Code DiagnosisRead vehicle fault codes to quickly locate car problems for timely maintenance. -
Trajectory PlaybackReplay 180 days route to trace asset paths and secure your assets. -
Geo-fenceGet alerts for unauthorized zone crossings, restrict vehicle activity range. -
Real-time TrackingMonitor your asset location live, keep full control all the time. -
Plug and PlayInstall instantly to save time and installation expenses. -
Plug Out AlarmAlert you instantly if the tracker gets unplugged to prevent tampering. -
Overspeed AlarmTrigger alerts when speed exceeds limit, manage reckless driving risks. -
Multiple AlarmMovement, vibration and ignition status alarms to guard your vehicle around the clock.
- Especificaciones del producto
- Características clave
- Descargar (Manual / Catálogo)
Filtro
Device Param
|
Model
|
MV55G PRO
|
|
Demension
|
59mm(L) * 45mm(W) * 22mm(H)
|
|
Weight
|
80g
|
|
Working Voltage
|
DC 9V - 50V
|
|
Working Temperature
|
-20℃ - 75C℃
|
|
Working Humidity
|
10%-85%RH
|
|
Built-in Memory
|
4800pcs GPS data can be stored at network blind area
|
GNSS
| Cold Start | ≤32 Seconds |
| Hot Start | ≤1 Second |
| GNSS Antenna | Built-in |
| Positioning Type | GPS+BEIDOU+LBS |
|
Tracking Sensitivity |
-162dBm |
|
GPS Channels |
64 |
|
Accurancy |
5-10m |
Cellular
|
Technology |
2G GSM+3G WCDMA+4G LTE CAT4 |
|
Working Frequency |
MV55G PRO-EU Module: Quectel EC25-EU GSM: B3/B8 WCDMA: B1/B8 LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 |
|
MV55G PRO-AU Module: Quectel EC25-AU GSM: B2/B3/B5/B8 WCDMA: B1/B2/B4/B5/B8 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD: B40 |
|
| Cellular Antenna | Built-in |
Power
| Battery |
3.7V 140mAh Lion Polymer battery |
|
Battery Working Time |
Tracking Mode：1-2 hours Sleep Mode: 8~9 hours |
Interface
| SIM Card | Micro SIM Card |
| Firmware Upgrade | OTA & UART Serial Upgrade |
| LED indication |
GSM LED |
| Charging LED | |
| GPS LED |
Certification
| Regulatory | CE, RoHS, FCC, UKCA, ISED |
