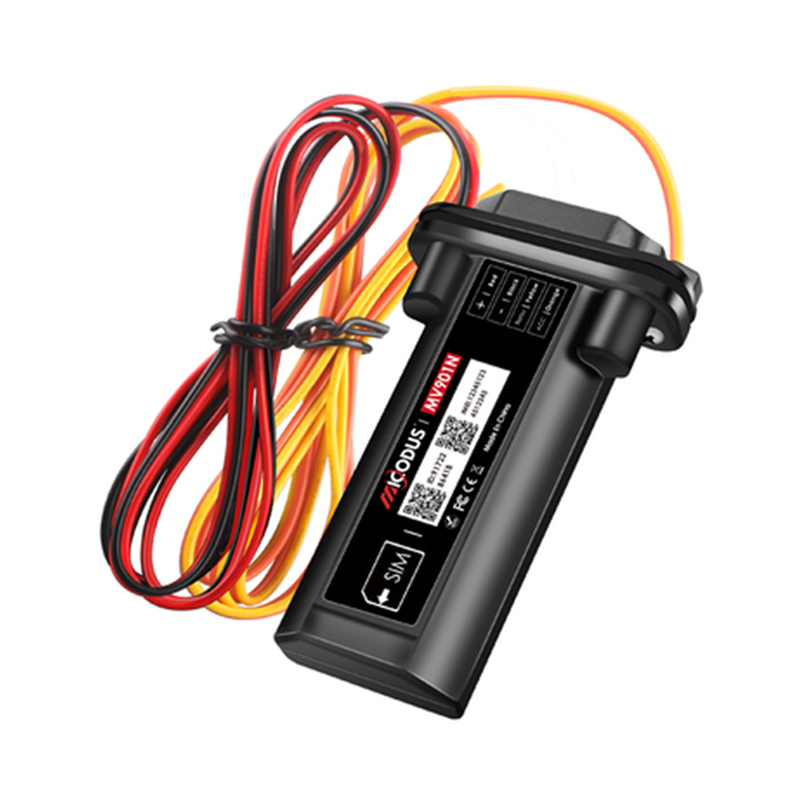

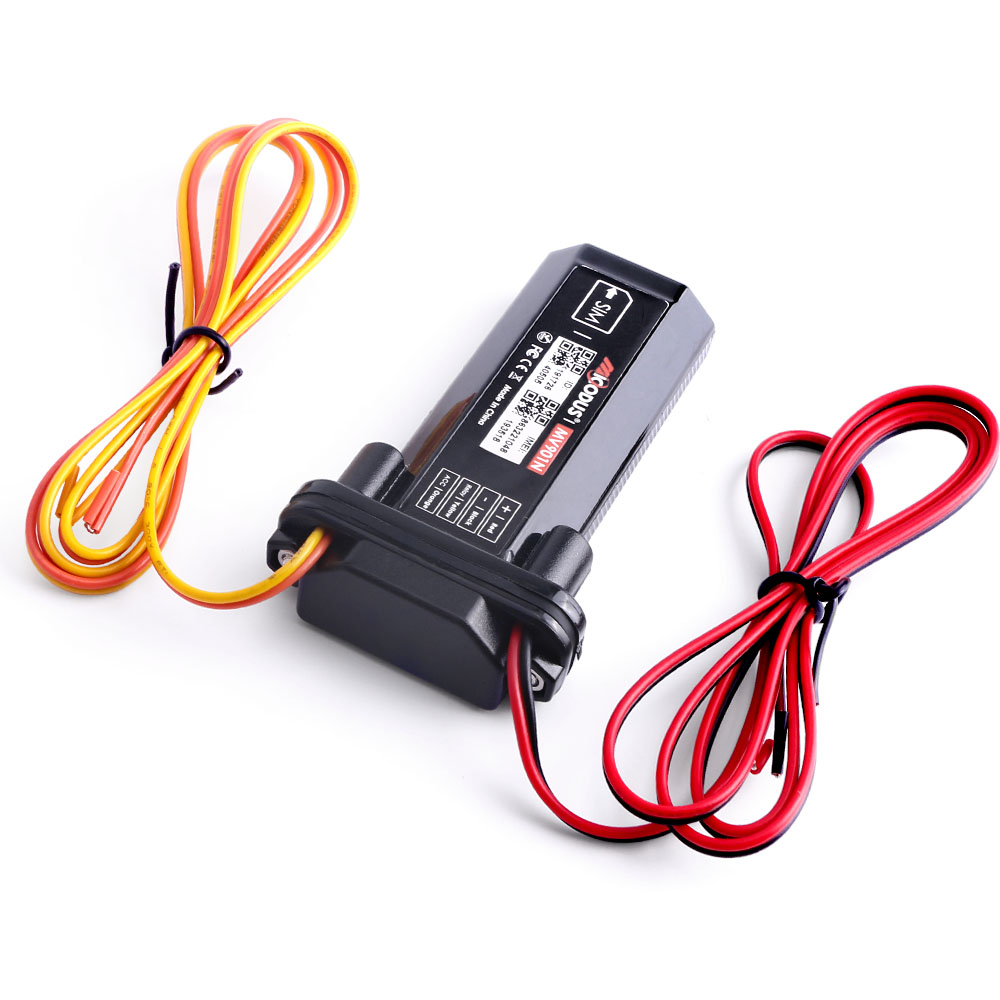

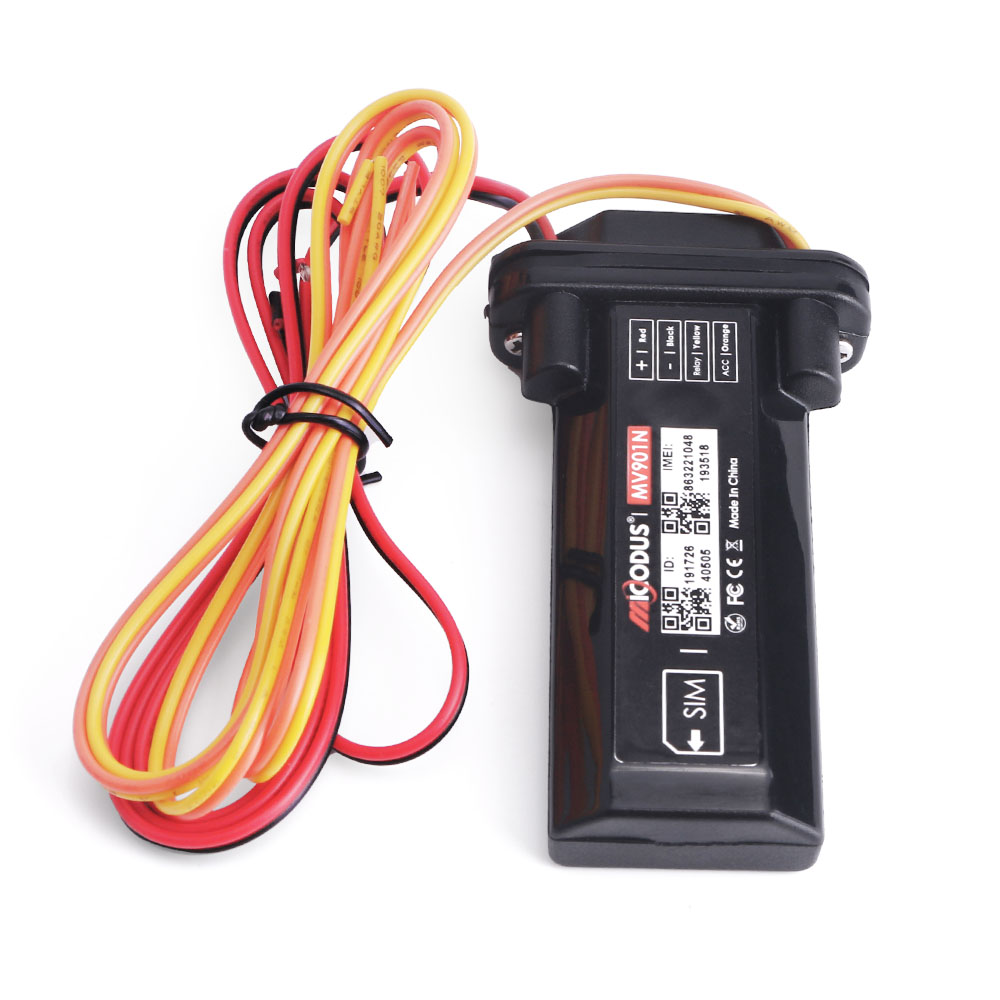

2G Vehicle GNSS Tracker – IP67 Waterproof Mini Size Fuel Cut Off Car Tracking
The MV901N is a 2G GNSS tracker with IP67 waterproof rating. Its mini form supports multiple hidden mounting positions. It delivers remote fuel cut‑off & resumption, ACC detection and various anti‑theft alarms. GPS+BDS+LBS positioning runs on 9‑95V wide voltage with built‑in 180mAh backup battery.
Características del producto
-
Remote Cut-off Fuel/PowerRemotely cut fuel or power for anti-theft protection and emergency safety control. -
ACC Status DetectionCapture vehicle ACC status for accurate activity records and asset supervision. -

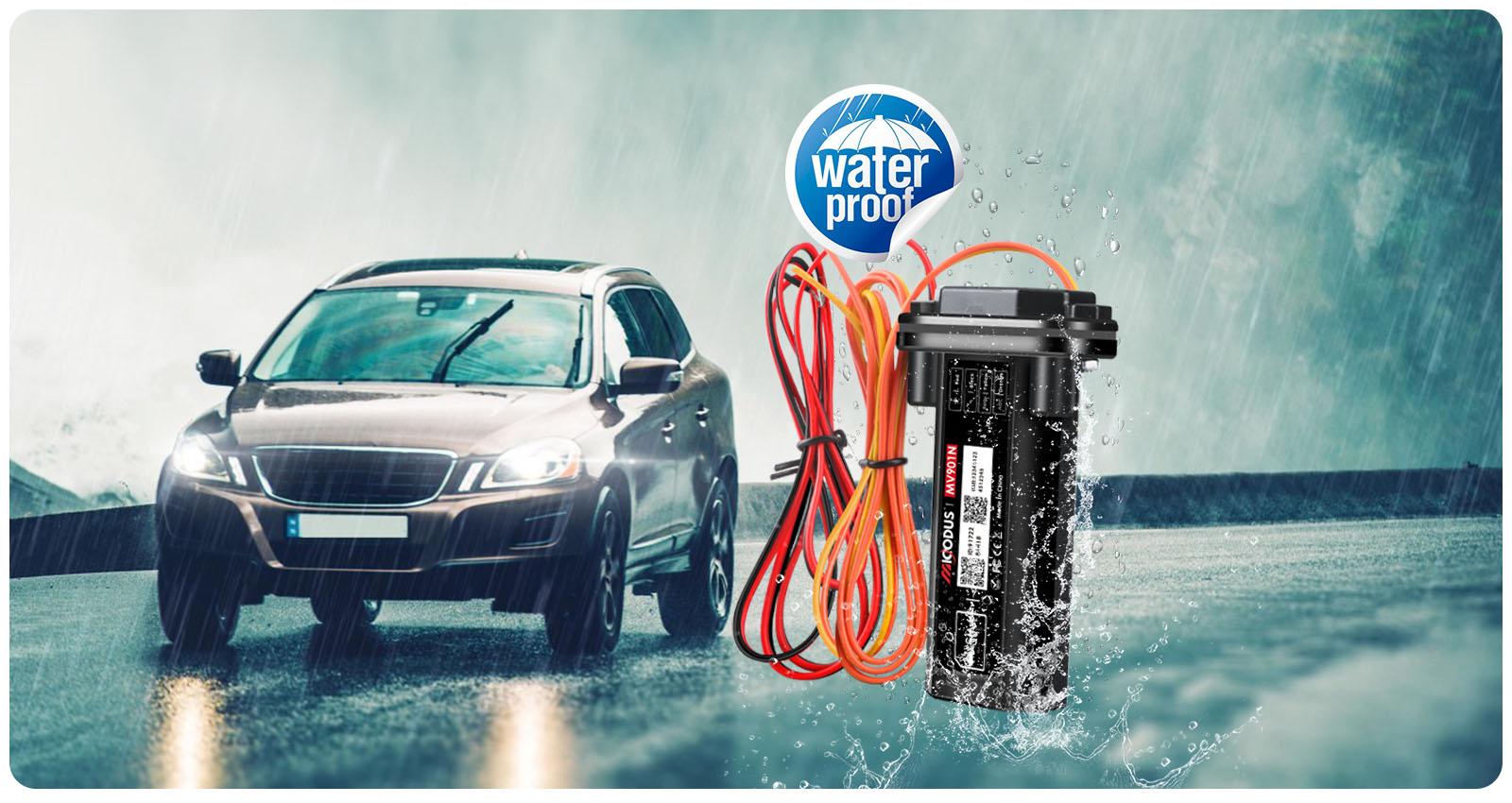

IP67 WaterproofWithstand temporary immersion, adapt to harsh outdoor environments. -
Trajectory PlaybackReplay 180 days route to trace asset paths and secure your assets. -
Geo-fenceGet alerts for unauthorized zone crossings, restrict vehicle activity range. -
Real-time TrackingMonitor your asset location live, keep full control all the time. -
Movement AlarmGet alerted the moment your vehicle moves, perfect for parking security. -
Vibration AlarmTrigger alerts on abnormal vibration, prevent vehicle tampering. -
Overspeed AlarmTrigger alerts when speed exceeds limit, manage reckless driving risks. -
Low Voltage AlarmMonitor car battery voltage, alert you early to avoid vehicle breakdown. -
GNSS+LBS PositioningPrecise satellite positioning, LBS backup when satellite signals drop. -
Ignition On‑Off AlarmReceive instant alerts when your vehicle ignition turns on or off. Catch unauthorized activity and safeguard your car against theft.
- Especificaciones del producto
- Características clave
- Descargar (Manual / Catálogo)
Filtro
Device Param
|
Model
|
MV901N
|
|
Demension
|
33mm(L) * 15mm(W) * 90mm(H)
|
|
Weight
|
63.2g
|
|
Working Voltage
|
DC 9V - 95V
|
|
Working Temperature
|
-20℃ - 55℃
|
|
Working Humidity
|
10%-85%RH
|
|
Built-in Memory
|
320pcs GPS data can be stored at network blind area
|
GNSS
|
Hot/Cold Start
|
<1s，<32s @ Open Sky
|
| GPS Channels | 64 |
| GNSS Antenna |
Built-in
|
| Positioning Type | GPS+BDS+GLONASS+LBS+AGPS |
| Tracking Sensitivity | -162 dBm |
|
Accurancy |
5-10m
|
Cellular
|
Technology
|
2G GSM
|
|
Working Frequency
|
GSM: 850/900/1800/1900MHz
|
| Cellular Antenna |
Built-in, FPC
|
Power
| Battery |
3.7V 180mAh Li-ion Battery |
|
Work Current |
4V/Average 45mA
|
|
Sleep Current |
4V/less than 5mA
|
Interface
| Digital Input | 1 x digital input for ignition detection |
| Digital Output | 1 x digital output for cut off oil |

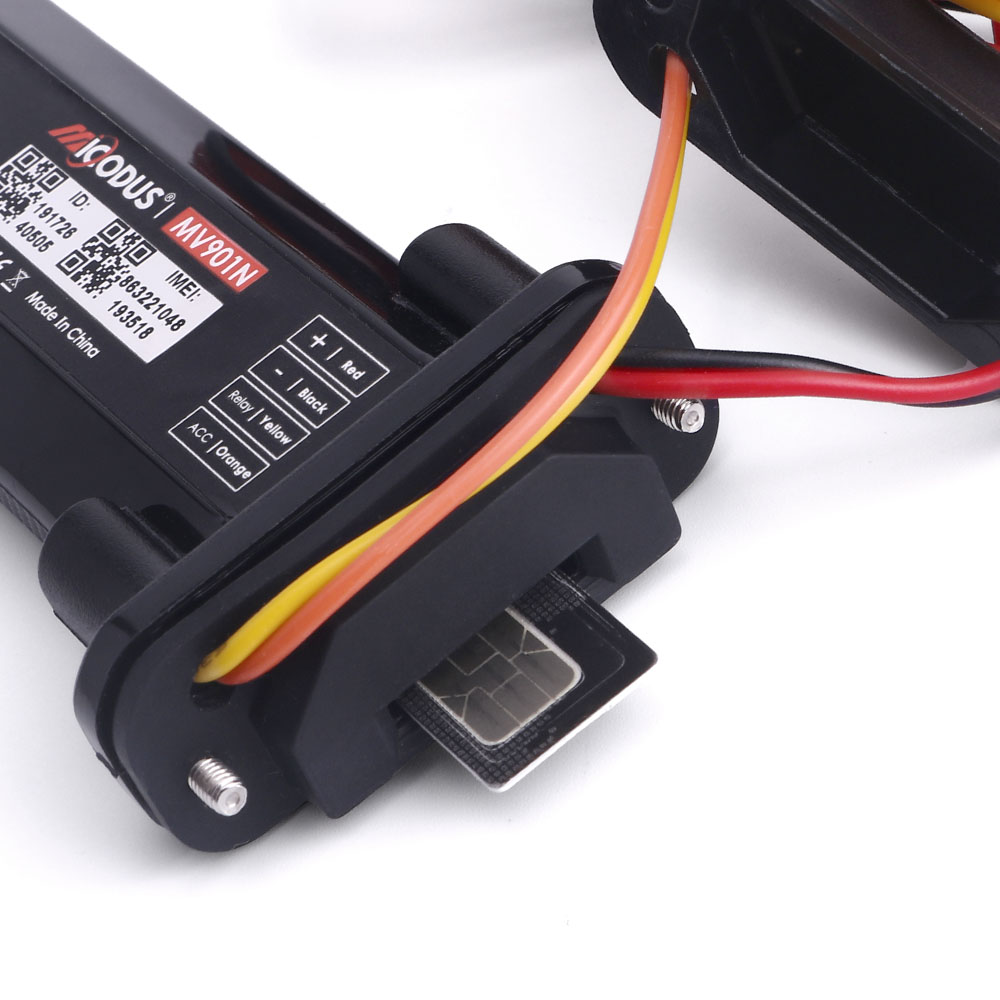

| SIM Card | Normal SIM Card |
| Firmware Upgrade | OTA & UART Serial Upgrade |
| LED indication |
GSM LED |
| Charging LED | |
| GPS LED |
Certification
| Regulatory | CE, RoHS, FCC, UKCA, ISED |
