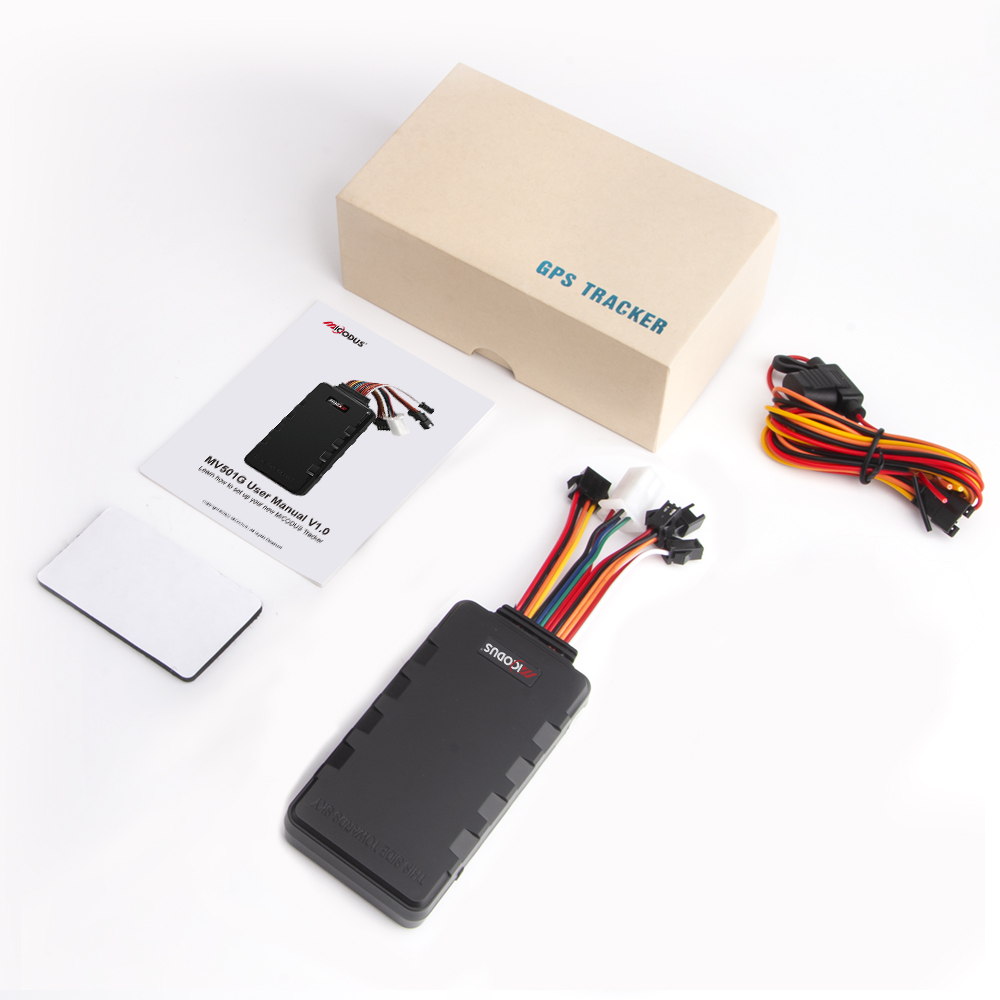

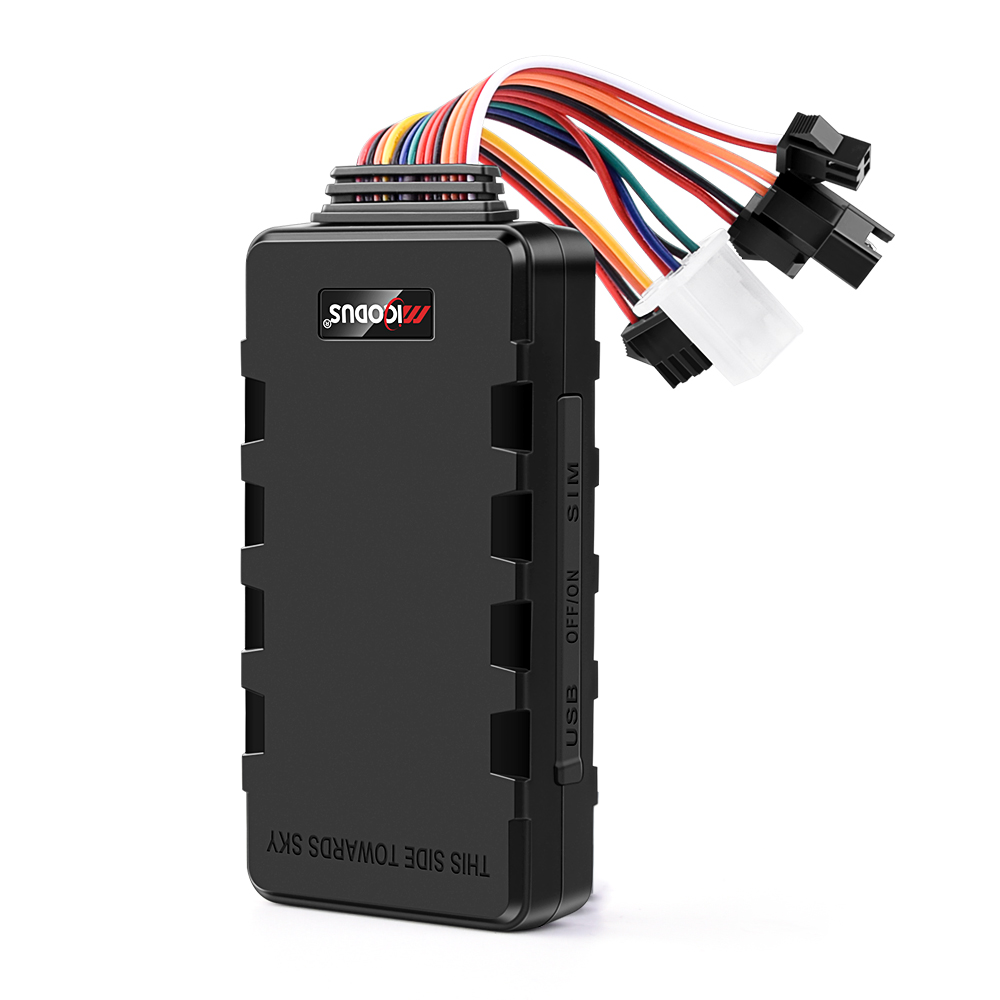

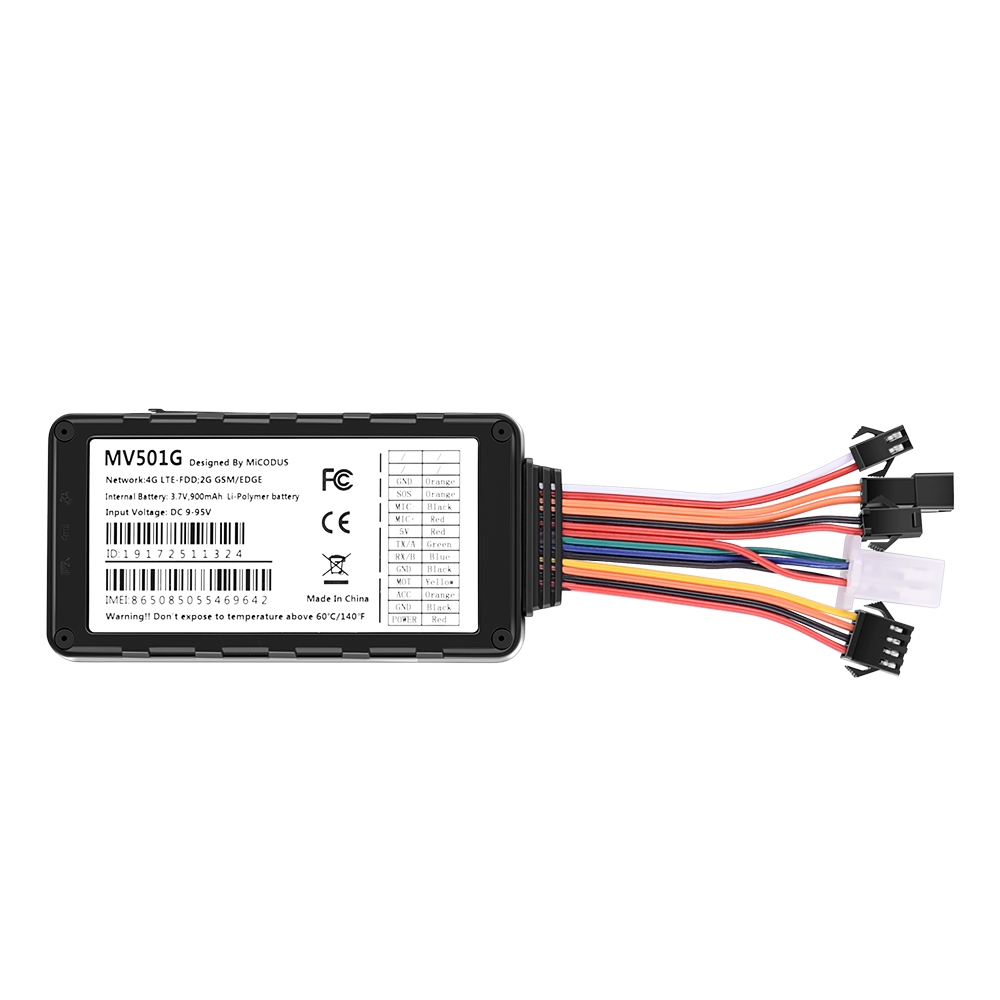

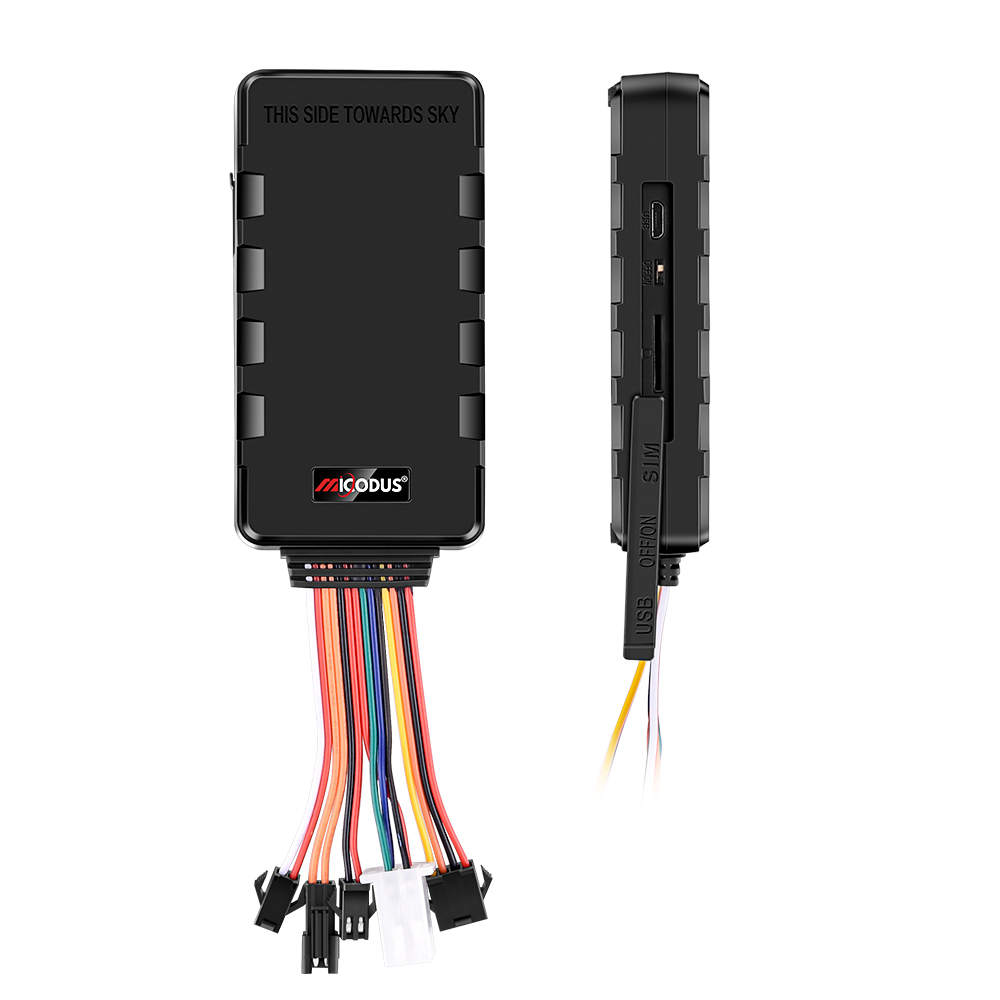

Multifunctional 4G Vehicle Tracker – Photo Capture, Fuel & Temperature Sensors

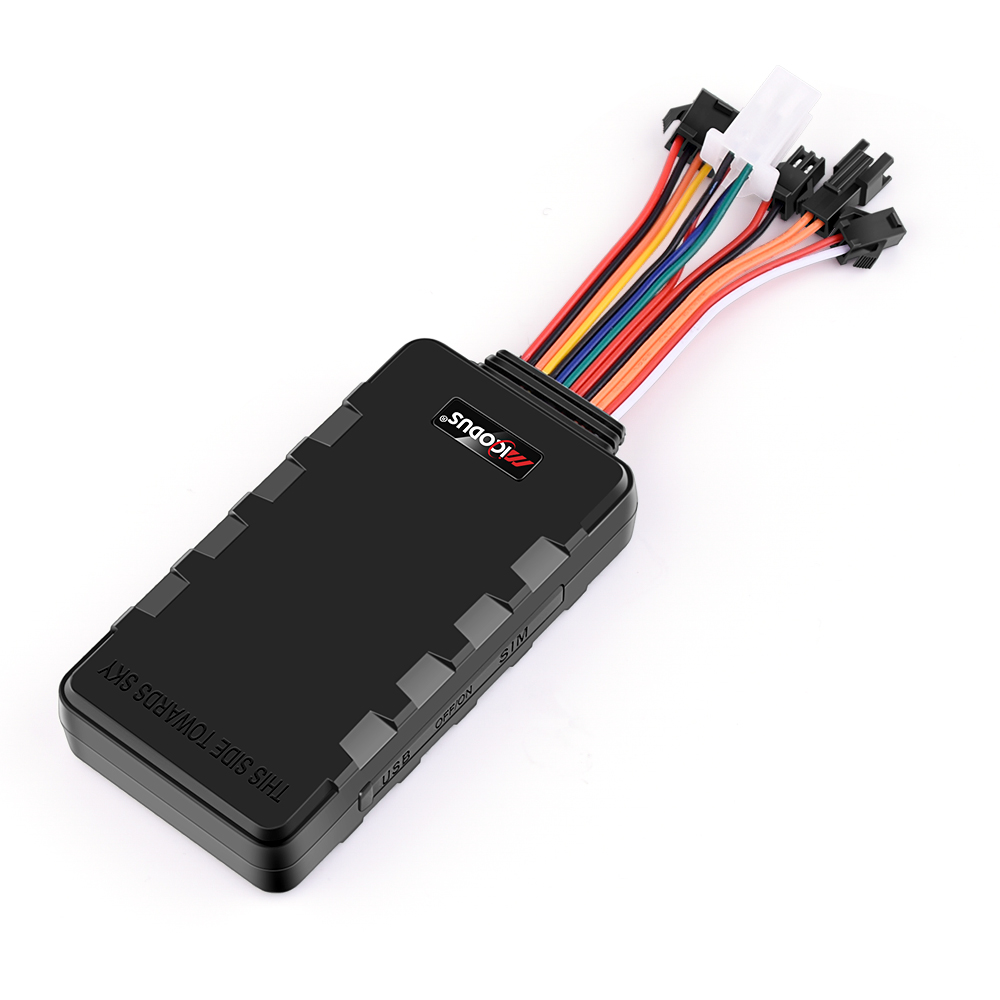

The MV501G stands out by supporting optional photo capture, fuel sensor, and temperature sensor—a rare all-in-one telematics edge over basic trackers. It offers voice monitoring, SOS emergency call, remote fuel cut-off, cut-wire alarm, and 9-95V wide voltage. With a 900mAh battery and 4G LTE tracking, it suits fleet management needing image evidence, fuel, and cold-chain oversight.
Características del producto
-
IButtonValidate driver ID to block unauthorized use & secure assets. -
Temperature MonitoringTrack real-time temperature, secure fragile and perishable cargo in transit. -
Camera Take PhotosTake photos manually or on alarm for on-site verification. -
Fuel Level SensorMonitor fuel level to detect fuel theft and track consumption. -
SOS Emergency CallSend urgent alerts with one tap, get assistance when meet emergencies. -
Remote Cut-off Fuel/PowerRemotely cut fuel or power for anti-theft protection and emergency safety control. -
ACC Status DetectionCapture vehicle ACC status for accurate activity records and asset supervision. -
Remote Voice MonitoringRemotely listen to onsite sounds, confirm safety around tracked assets. -
Trajectory PlaybackReplay 180 days route to trace asset paths and secure your assets. -
Geo-fenceGet alerts for unauthorized zone crossings, restrict vehicle activity range. -
Real-time TrackingMonitor your asset location live, keep full control all the time. -
Multiple Anti-theft AlarmsMovement, vibration, wire‑cut and ignition status alarms to guard your vehicle around the clock.
- Especificaciones del producto
- Características clave
- Descargar (Manual / Catálogo)
Filtro
Device Param
|

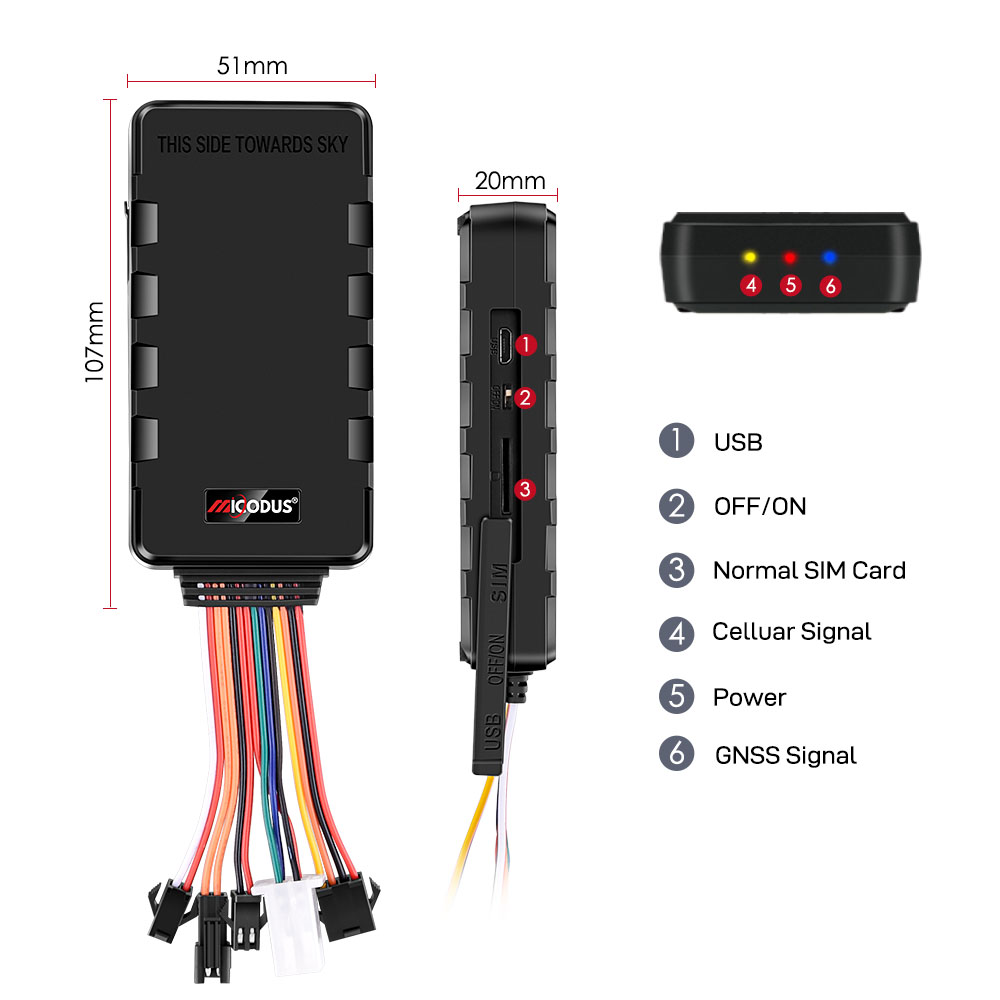

Model
|
MV501G
|
|
Demension
|
107mm(L) * 51mm(W) * 20mm(H)
|
|
Weight
|
150g
|
|
Working Voltage
|
DC 9V - 95V
|
|
Working Temperature
|
-20℃ - 75℃
|
|
Working Humidity
|
10%-85%RH
|
|
Built-in Memory
|
3000pcs GPS data can be stored at network blind area
|
GNSS
| Cold Start | ≤32 Seconds |
| Hot Start | ≤1 Second |
| Tracking sensitivity | -162 dBm |
| GPS Channels | 64 |
| GNSS Antenna | Built-in |
| Positioning Type | GPS+GLONASS+LBS+AGPS |
|
Accurancy |
5-10m |
Cellular
|
Technology |
2G GSM+4G LTE CAT1 |
|
GSM Frequency |
MV501G-SA
Module: SIMCOM A7670SA
GSM: 850/900/1800/1900MHz
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
|
|
MV501G-EU
Module: SIMCOM A7670E
GSM: 900/1800MHz
LTE-FDD: B1/B3/B5/B7/B8/B20
|
|
| Cellular Antenna | Built-in |
Power
| Battery |
3.7V 900mAh Lion Polymer battery |
|
Work Current |
4V/Average 45mA |
|
Sleep Current |
4V/less than 5mA |
|
Charging Time |
Around 7 hours |
|
Battery Working Time |
Tracking Mode:3- 4 Days |
Interface
| Digital Input |
1 x digital input for ibutton |
| 1 x digital input for temperature sensor | |
| 1 x digital input for SOS button | |
| 1 x digital input for ignition detection | |
| Analog Input | 1 x digital input for microphone |
| Digital Output | 1 x digital output for cut off oil |
| Serial Port | 1 x RS232 for fuel sensor/camera |
| SIM Card | Micro SIM Card |
| Firmware Upgrade | OTA & UART Serial Upgrade |
| LED indication |
GSM LED |
| Charging LED | |
| GPS LED |
Certification
| Regulatory | CE, RoHS, FCC, UKCA, ISED |
Escenarios de aplicación

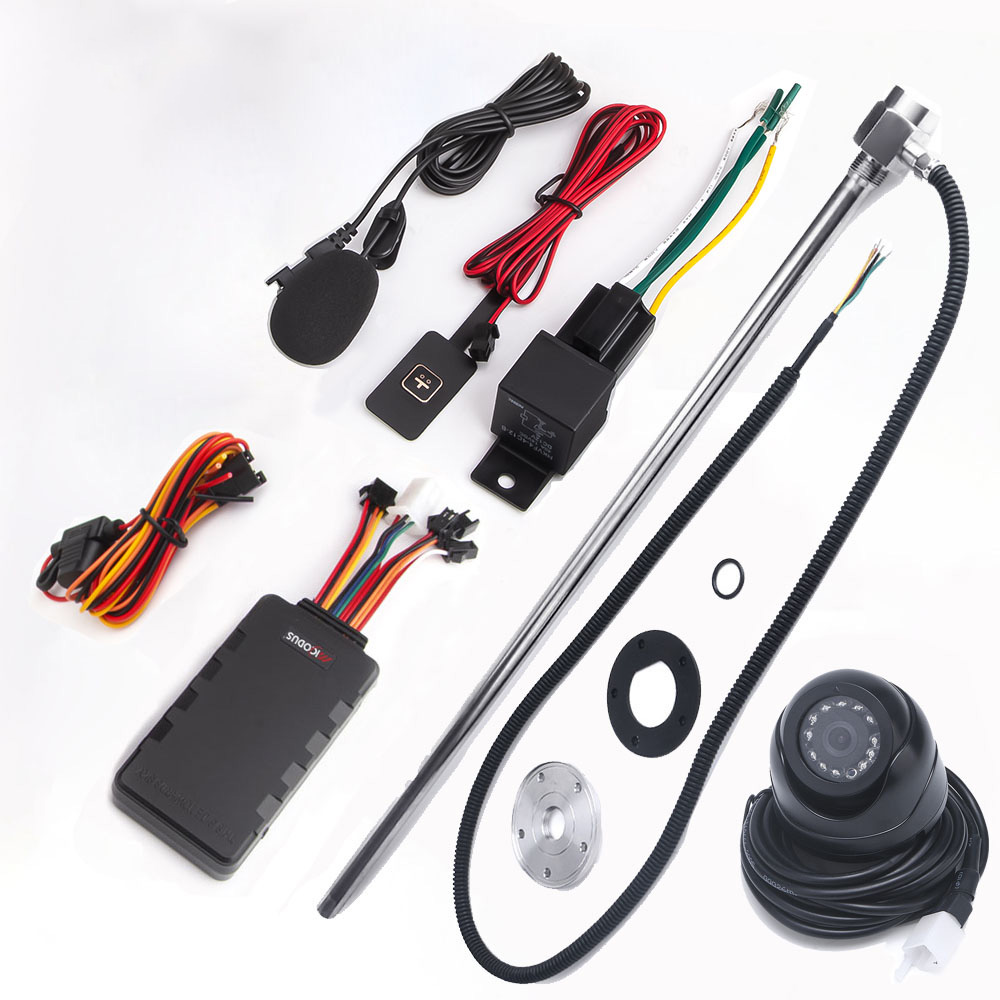

Accesorios relacionados
-
SIM Card -
Relay -
SOS Button -
Microphone -

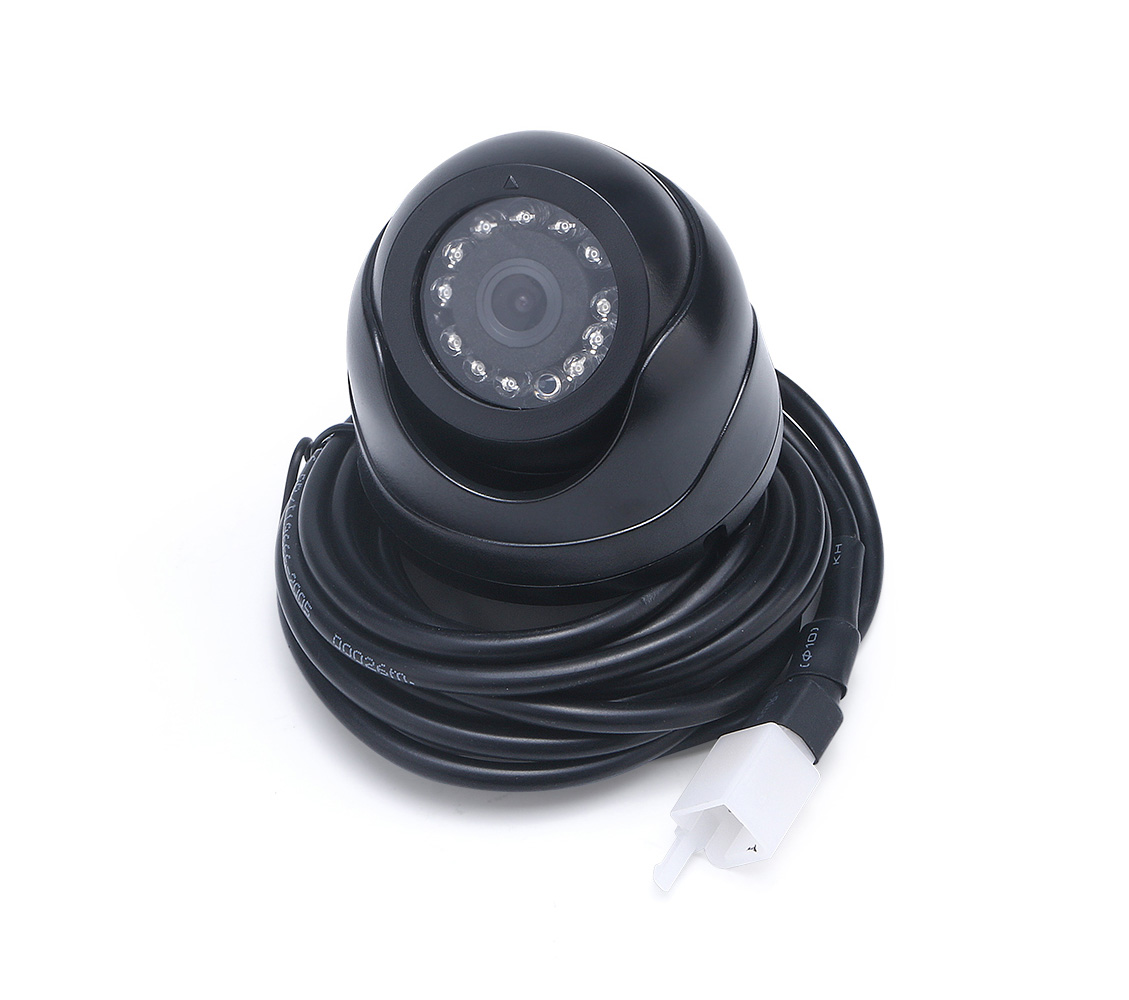

Camera -

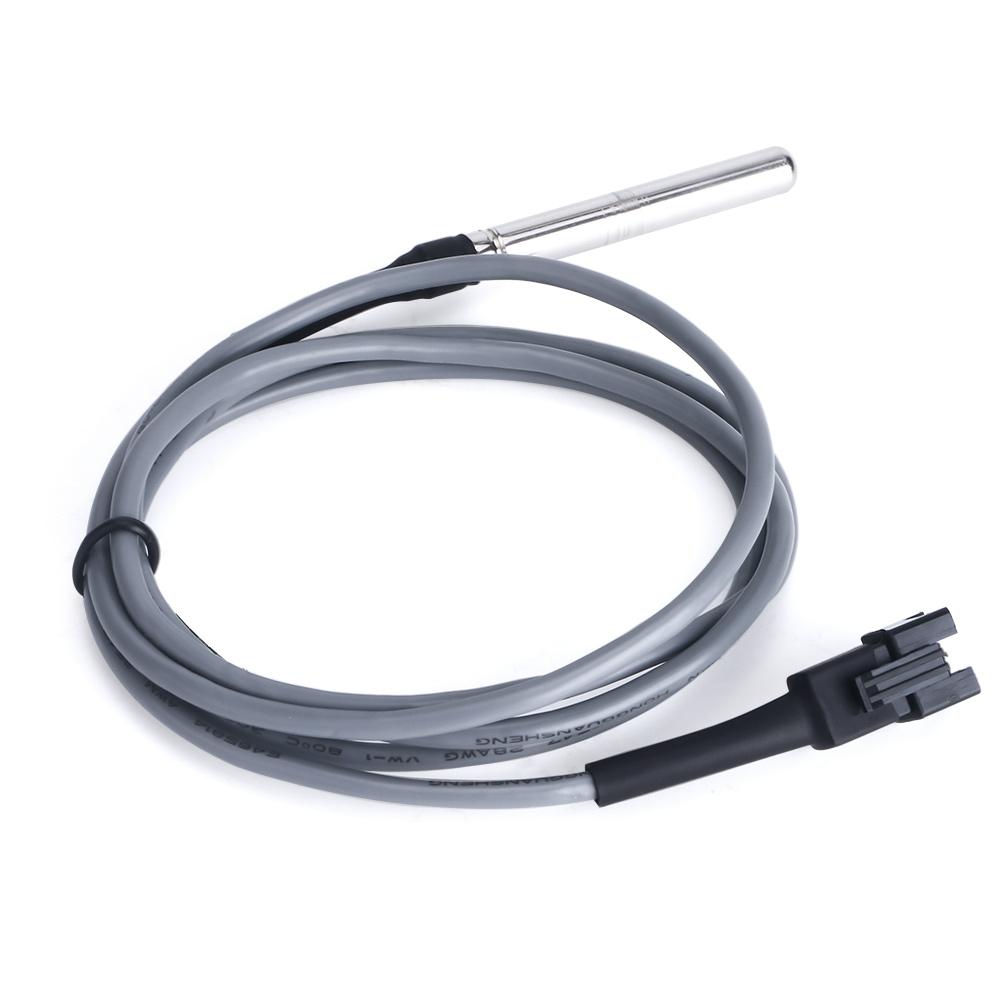

Temperature Sensor -

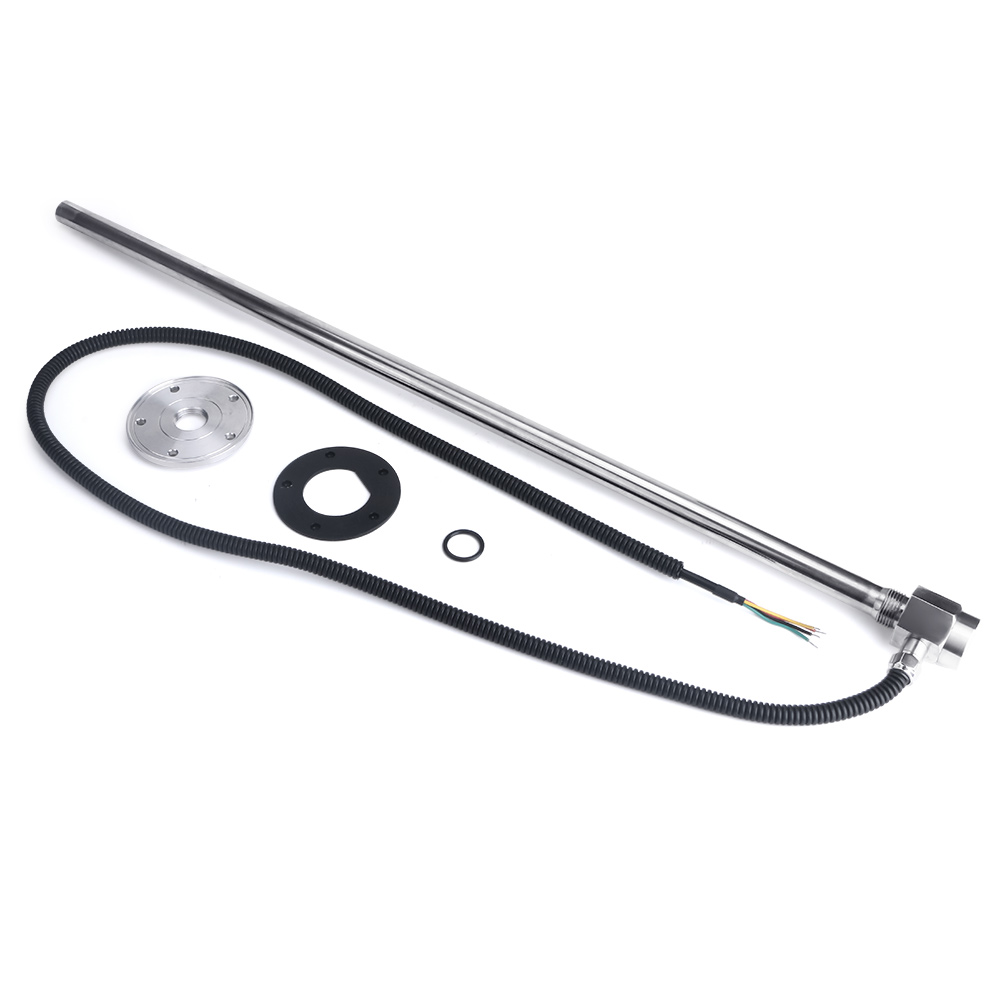

Fuel Sensor
